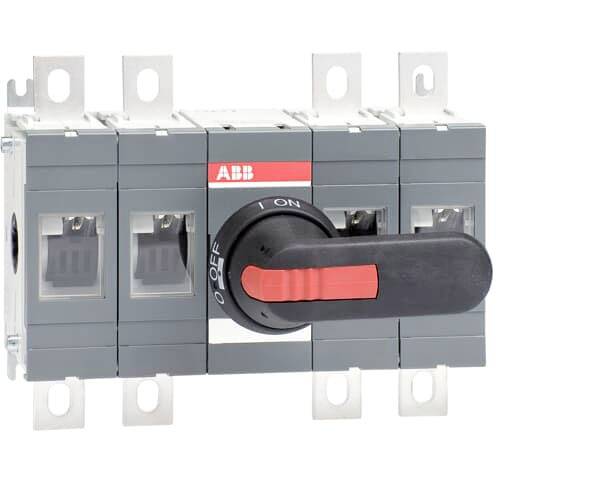

ABB 1SCA022727R4270 OT315E22P Circuit breaker 4-pin 315 A
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
315 A
Nominal current
315 A
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
315 A
- Nominal current
315 A
- Factory colour
Black
- Content
1 pc(s)
240
185 mm
107 mm
160 kW
0
0
315 A
4
1000-1000 V
IP65
0
TRUE
FALSE
Bolt connection
FALSE
Short thumb-grip
TRUE
FALSE
FALSE
160 kW
15 kA
Black
TRUE
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
315 A
180 kW
FALSE
315
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324298 ABB 1SCA022727R4270 OT315E22P Circuit breaker 4-pin 315 A
User & Safety Instructions
User & Safety Instructions 2324298 ABB 1SCA022727R4270 OT315E22P Circuit breaker 4-pin 315 A
Description
The manually operated OT series switch disconnectors are unique in their variety and flexibility. The OT series switches currents from 16 A to 4000 A and this at voltages of up to 1000 V AC. Despite their high power, the switches are very comfortable to use and require little space. Due to the freely selectable mounting position, a high flexibility and efficiency is possible during planning. In addition, the OT switches can be used as main or sub-distribution switches. Of course, the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. This means that the OT switch disconnectors can be used in even the most demanding applications.
