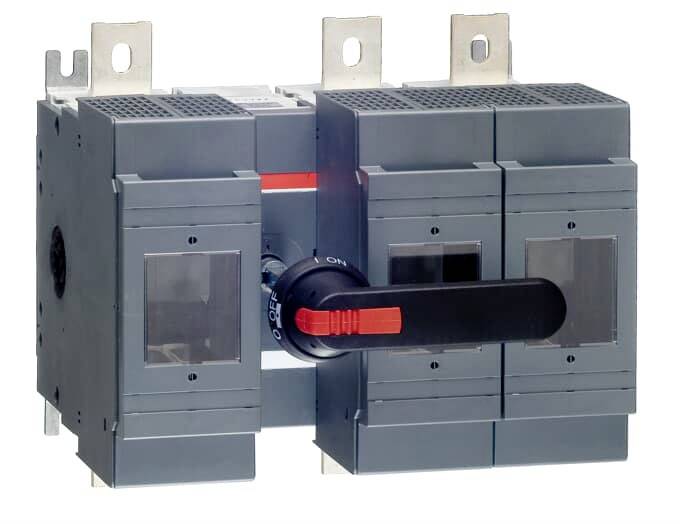

ABB 1SCA022825R3810 OS630D12P Circuit breaker Fuse size = 3 3-pin 570 A
Product type
Circuit breaker
Number of pins
3
Nominal current - rounded value
570 A
Fuse size
3
Nominal current
570 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Fuse size
3
- Nominal current - rounded value
570 A
- Nominal current
570 A
- Content
1 pc(s)
Other
630 A
3
80 kA
IP20
FALSE
Bolt connection
FALSE
Long turning handle
TRUE
FALSE
355 kW
18 kA
TRUE
690 V
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323529 ABB 1SCA022825R3810 OS630D12P Circuit breaker Fuse size = 3 3-pin 570 A
User & Safety Instructions
User & Safety Instructions 2323529 ABB 1SCA022825R3810 OS630D12P Circuit breaker Fuse size = 3 3-pin 570 A
Description
ABB's OS series manual operated circuit breakers provide optimum protection for the most demanding applications. The OS series switches currents from 20 A to 1250 A and this at voltages up to 690 V AC. All OS switches have an integrated fuse chamber in which fuses of different types can be used. ABB offers different versions for different backup standards. Thanks to the modular design, the mechanism and the poles can be positioned according to the installation requirements. This enables high flexibility and efficiency in planning. In addition, the series has IEC and UL approvals. ABB offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. The OS switches are an ideal solution for motor protection and can be used in numerous other industrial applications as well as transformers.
