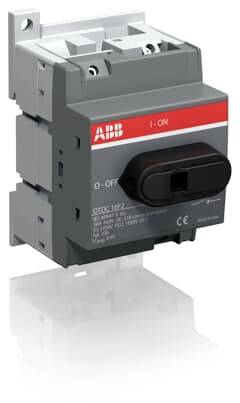

ABB 1SCA121454R1001 OTDC16F2 Circuit breaker 2-pin 25 A 1000 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Nominal current - rounded value
25 A
Nominal current
25 A
Factory colour
Black
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Nominal current - rounded value
25 A
- Nominal current
25 A
- Factory colour
Black
- Content
1 pc(s)
- Nominal voltage
1000 V
52.5
89 mm
66.2 mm
0
0
16 A
2
1000-1000 V
IP20
0
1
TRUE
FALSE
Screw connection
FALSE
Toggle
TRUE
FALSE
TRUE
0.8 kA
Black
TRUE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321922 ABB 1SCA121454R1001 OTDC16F2 Circuit breaker 2-pin 25 A 1000 V
User & Safety Instructions
User & Safety Instructions 2321922 ABB 1SCA121454R1001 OTDC16F2 Circuit breaker 2-pin 25 A 1000 V
Description
The manually operated switch disconnectors of the OTDC series are a cost-effective and reliable solution for the most varied areas of industrial DC applications. The OTDC series switches currents from 16 A to 32 A without any problem at voltages up to 1000 V DC. Due to different mounting options, the switches allow a high flexibility and efficiency in planning. The series has an IEC approval and ensures reliable shutdown performance at all currents without compromising safety. In addition, the switches are designed so that they can be used in particularly high ambient temperatures. In addition, the power loss has been reduced by 50%. ABB offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. Therefore, the DC switch disconnectors can be used in the most demanding applications.
