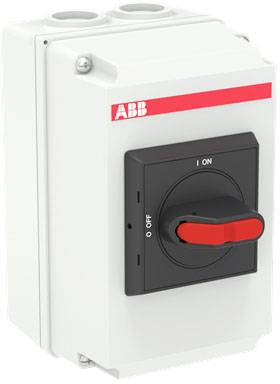

ABB 1SCA125093R1001 OTDCP32S22M Circuit breaker 4-pin 32 A 1000 V
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
32 A
Nominal current
32 A
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
32 A
- Nominal current
32 A
- Factory colour
Black
- Content
1 pc(s)
- Nominal voltage
1000 V
95
150 mm
95 mm
0
0
32 A
4
1000-1000 V
IP65
0
1
TRUE
FALSE
Screw connection
FALSE
Toggle
TRUE
FALSE
TRUE
Black
FALSE
FALSE
FALSE
FALSE
FALSE
1000 V
FALSE
FALSE
Complete device in housing
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317615 ABB 1SCA125093R1001 OTDCP32S22M Circuit breaker 4-pin 32 A 1000 V
User & Safety Instructions
User & Safety Instructions 2317615 ABB 1SCA125093R1001 OTDCP32S22M Circuit breaker 4-pin 32 A 1000 V
Description
The manually operated switch disconnectors in the OTDCP series housing are a cost-effective and reliable solution for a wide range of industrial DC applications. The OTDCP series switches currents from 16 A to 32 A without any problem at voltages up to 1000 V DC. Due to different mounting options, the switches allow a high flexibility and efficiency in planning. The series has an IEC approval and ensures reliable shutdown performance at all currents without compromising safety. In addition, the switches are designed so that they can be used in particularly high ambient temperatures. In addition, the power loss has been reduced by 50%. ABB offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. Therefore, the DC switch disconnectors can be used in the housing in the most demanding applications.
