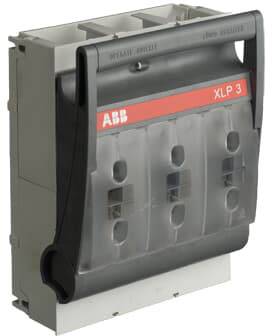

ABB 1SEP101975R0001 XLP3 Switch disconnector fuse Fuse size = 3 3-pin 500 A 690 V
Product type
Switch disconnector fuse
Number of pins
3
Nominal current - rounded value
500 A
Fuse size
3
Nominal current
500 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse
- Number of pins
3
- Fuse size
3
- Nominal current - rounded value
500 A
- Nominal current
500 A
- Content
1 pc(s)
- Nominal voltage
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321454 ABB 1SEP101975R0001 XLP3 Switch disconnector fuse Fuse size = 3 3-pin 500 A 690 V
User & Safety Instructions
User & Safety Instructions 2321454 ABB 1SEP101975R0001 XLP3 Switch disconnector fuse Fuse size = 3 3-pin 500 A 690 V
Description
ABB's EasyLine range has a robust, uniform design that is easy to use. Thanks to this modern design, the series switches nominal currents from 100 A - 630 A at voltages from 220 V to 690 V with ease. In addition, a high degree of safety is guaranteed with the IP30 degree of protection from the front in the closed position and the IP20 degree of protection in the open position. ABB offers you the series in 1, 2, 3 and 4-pin versions including a wide range of cable clamps and snap-on accessories. In addition, the devices are tested according to EN / IEC 60947-3
