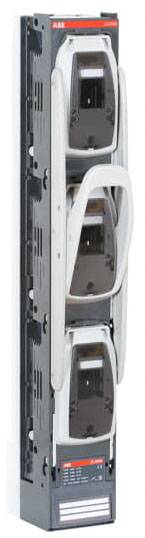

ABB 1SEP620013R3020 ZLBM3-3P-V Switch disconnector fuse Fuse size = 3 3-pin 630 A 690 V
EAN:
Part number:
Item no:
Product type
Switch disconnector fuse
Number of pins
3
Nominal current - rounded value
630 A
Fuse size
3
Nominal current
630 A
Datasheet (PDF)
Technical specifications
- Product type
Switch disconnector fuse
- Number of pins
3
- Fuse size
3
- Nominal current - rounded value
630 A
- Nominal current
630 A
- Content
1 pc(s)
- Nominal voltage
690 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324033 ABB 1SEP620013R3020 ZLBM3-3P-V Switch disconnector fuse Fuse size = 3 3-pin 630 A 690 V
User & Safety Instructions
User & Safety Instructions 2324033 ABB 1SEP620013R3020 ZLBM3-3P-V Switch disconnector fuse Fuse size = 3 3-pin 630 A 690 V
Description
The inline II ZLBM / ZHBM device generation offers you the best possible stability and highest security in the power distribution network. They switch nominal currents from 160 A to 630 A and through the use of double grips even up to 1250 A. Thereby you provide for the highest personal protection during operation and maintenance of your switchgear. ABB offers the series in 1 and 3-pin versions, which have been tested according to EN / IEC 60947-3. The installation is more space-saving and flexible than ever before thanks to horizontal and vertical mounting. We also ensure simple and safe installation of the current transformers as well as replacement of the LV HRC fuse links. The series is suitable for phase rails with a distance of 185 mm.
