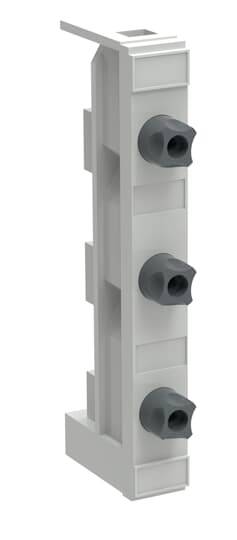

ABB 1SEP622350R0001 XLPD0-FB-E18/27-3P D-fuse socket 3-pin 63A with frame terminals Overvoltage/overcurrent protector 1
Product type
Overvoltage/overcurrent protector
Number of pins
3
Content
1 pc(s)
Mounting method
Busbar system
Rated current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Overvoltage/overcurrent protector
- Number of pins
3
- Content
1 pc(s)
Busbar system
63 A
400 V
3
D02
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3113414 ABB 1SEP622350R0001 XLPD0-FB-E18/27-3P D-fuse socket 3-pin 63A with frame terminals Overvoltage/overcurrent protector 1
User & Safety Instructions
User & Safety Instructions 3113414 ABB 1SEP622350R0001 XLPD0-FB-E18/27-3P D-fuse socket 3-pin 63A with frame terminals Overvoltage/overcurrent protector 1
Description
The devices of the XLPD0-series can be mounted quickly and easily on the bus bar without tools. They can be secured with a padlock in the OFF position (O) and sealed in the ON position (1). Together with the reducer it is also suitable for fuse links of the size D01. The use of the 9 mm side module is recommended for a continuous load of more than 35A. XLPD0 fuse bases have a comprehensive shock protection including a strip cover.
Fuse sockets are available for Neozed (D02) and Diozed (DII, DIII) fuses.
All D02 fuse sockets are UL recognized.
This text is machine translated.
Fuse sockets are available for Neozed (D02) and Diozed (DII, DIII) fuses.
All D02 fuse sockets are UL recognized.
