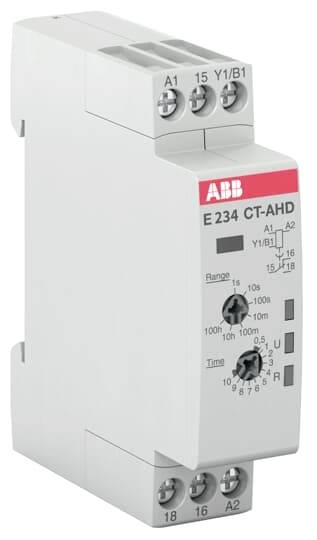

ABB 1SVR500110R0000 CT-AHD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs Piece
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
Off-delay
Operating voltage
250 V DC/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
CT-AHD.12
- Type
Multifunction
- Connection
Screws
- Functions
Off-delay
- Operating voltage
250 V DC/AC
- Min. operating voltage
24 V DC/AC
- Max. operating voltage
240 V AC
48 V DC
- Operating voltage
24 - 240, 48 V AC, V DC
- Contact type
2 change-overs
- Switching current (max.)
6 A
- Time range (min.)
0.05 s
- Time range (max.)
360000 s
- Width
70 mm
- Height
17.5 mm
- Depth
63 mm
- Dim
(W x H x D) 70 x 17.5 x 63 mm
- Content
1 pc(s)
- Weight
50 g
6 A
17.5
70 mm
64 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
0.05-360000 s
TRUE
FALSE
FALSE
Screw connection
24-240 V
24-240 V
24-48 V
0
0
1
0
0
1
FALSE
FALSE
TRUE
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111424 ABB 1SVR500110R0000 CT-AHD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs Piece
User & Safety Instructions
User & Safety Instructions 3111424 ABB 1SVR500110R0000 CT-AHD.12 TDR Multifunction 250 V DC/AC 1 pc(s) Time range: 0.05 - 360000 s 2 change-overs Piece
Description
The time relays of the series CT-D in MDRC design are located in a housing which is only 17.5 mm wide and fits in all the common installation and distribution cabinets. The CT-D series is the link between industrial and installation design. 10 single and 2 multi-function devices with 7 time functions are available for maximum flexibility in use. The devices have 4 or 7 time ranges, which can be set from 0.05 seconds to 100 hours. Their wide-range input enables a worldwide use.
