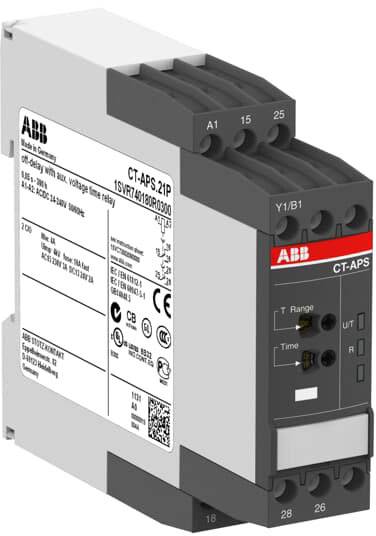

ABB 1SVR740180R0300 CT-APS.21P TDR Multifunction 1 pc(s) Time range: 0.05 s - 300 h
Product type
TDR
Type
Multifunction
Max. operating voltage
24 V
Type
CT-APS.21P
Connection
Spring-loaded connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
TDR
- Type
CT-APS.21P
- Type
Multifunction
- Connection
Spring-loaded connector
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Time range (min.)
0.05 s
- Time range (max.)
300 h
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
22.5 mm
- Height
85.6 mm
- Depth
103.7 mm
- Dim
(W x H x D) 22.5 x 85.6 x 103.7 mm
- Content
1 pc(s)
4 A
22.5
78 mm
102 mm
Spring clamp connection
24-240 V
24-240 V
24-240 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325472 ABB 1SVR740180R0300 CT-APS.21P TDR Multifunction 1 pc(s) Time range: 0.05 s - 300 h
User & Safety Instructions
User & Safety Instructions 2325472 ABB 1SVR740180R0300 CT-APS.21P TDR Multifunction 1 pc(s) Time range: 0.05 s - 300 h
Description
The CT-S series is ABB's most economical and universal time relay series. The program comprises 16 multi- and 26 single-function devices with up to 11 functions, which enable the highest flexibility in use. The devices have 7 or 10 time ranges, which can be set from 0.05 seconds to 300 hours. In addition, an extended temperature range of -40 °C to +60 °C is possible for selected devices.
