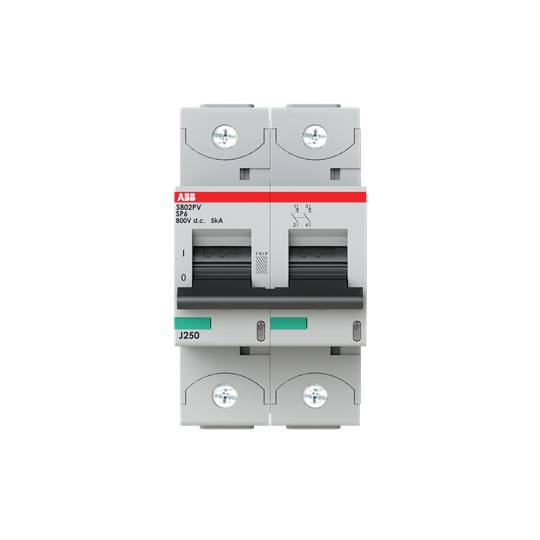

ABB 2CCF019643R0001 S802PV-SP6 Circuit breaker 6 A 800 V
Product type
Circuit breaker
Number of pins
2
Release characteristics
B
Nominal current - rounded value
6 A
Nominal current
6 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
B
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Content
1 pc(s)
- Nominal voltage
800 V
IP20
DC
111 mm
6 A
800 V
0-0 Hz
B
1500 V
3
3
2
3
FALSE
IP20
2
FALSE
0-70 mm²
0-50 mm²
-25-60 °C
FALSE
TRUE
2
5 kA
5 kA
5 kA
5 kA
8 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3116379 ABB 2CCF019643R0001 S802PV-SP6 Circuit breaker 6 A 800 V
User & Safety Instructions
User & Safety Instructions 3116379 ABB 2CCF019643R0001 S802PV-SP6 Circuit breaker 6 A 800 V
Description
The high-performance circuit breakers of the series S800PV-SP protect cables and wires against overload and short circuit. They have a rated short circuit breaking capacity of 5 kA at 1,500 V DC for photovoltaic applications. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800PV complies with the IEC / EN 60947-2 standard and allows the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive accessories make it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800PV.
