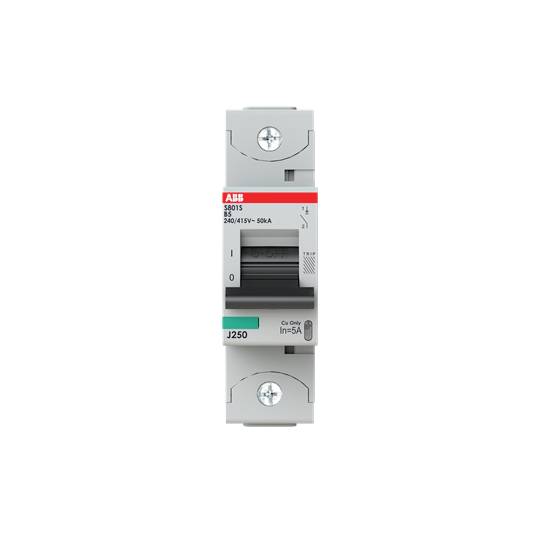

ABB 2CCF019848R0001 S801S-B5 Circuit breaker 5 A 230 V
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
5 A
Nominal current
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
5 A
- Nominal current
5 A
- Content
1 pc(s)
- Nominal voltage
230 V
IP20
AC/DC
82.5 mm
5 A
230 V
50-60 Hz
B
690 V
3
4
3
1.5
FALSE
IP20
1
TRUE
0-70 mm²
0-50 mm²
-25-60 °C
TRUE
TRUE
1
50 kA
6 kA
8 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3116391 ABB 2CCF019848R0001 S801S-B5 Circuit breaker 5 A 230 V
User & Safety Instructions
User & Safety Instructions 3116391 ABB 2CCF019848R0001 S801S-B5 Circuit breaker 5 A 230 V
Description
The high performance circuit breakers of the series S800S protect cables and wires from overload and short circuit. They have a rated short circuit breaking capacity of 50 kA at 240/415 V AC. It can also be used for voltages up to 400/690 V AC and DC. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800S complies with the IEC/EN 60947-2 standard and enables the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive range of accessories makes it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800S.
