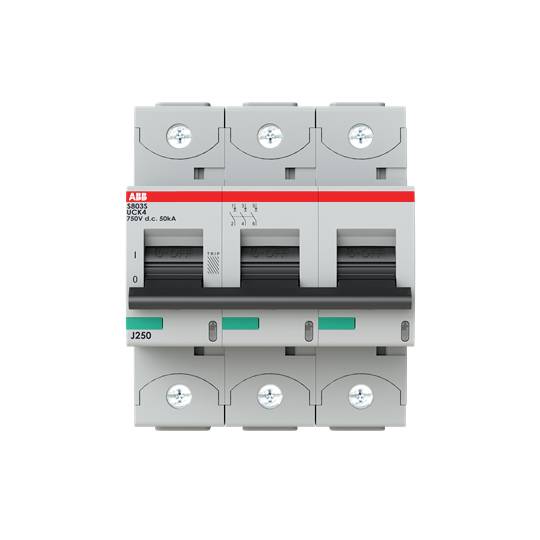

ABB 2CCF020025R0001 S803S-UCK4 Circuit breaker 4 A 750 V
Product type
Circuit breaker
Number of pins
3
Nominal current - rounded value
4 A
Nominal current
4 A
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Nominal current - rounded value
4 A
- Nominal current
4 A
- Content
1 pc(s)
- Nominal voltage
750 V
IP20
DC
82.5 mm
4 A
750 V
50-60 Hz
Other
1000 V
3
3
2
4.5
FALSE
IP20
3
TRUE
0-70 mm²
0-50 mm²
-25-60 °C
TRUE
TRUE
3
8 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3116516 ABB 2CCF020025R0001 S803S-UCK4 Circuit breaker 4 A 750 V
Description
The high performance circuit breakers of the series S800S-UC protect cables and wires from overload and short circuit. They have a rated short-circuit breaking capacity of 50kA at 250V (single-pole), 500V (two-pole) and 750V (three-pole and four-pole) DC. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800S-UC complies with IEC/EN 60947-2 standard and enables the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive range of accessories makes it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800S-UC.
