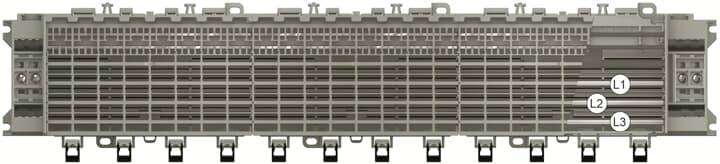

ABB 2CCF212236A0001 ZLSP950E102-3L Smissline TP Power bar 400A Busbar system 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar system
Content
1 pc(s)
Width
113 mm
Model
Other
Height
1911 mm
Datasheet (PDF)
Technical specifications
- Product type
Busbar system
- Content
1 pc(s)
113 mm
Other
1911 mm
49 mm
250 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3116673 ABB 2CCF212236A0001 ZLSP950E102-3L Smissline TP Power bar 400A Busbar system 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3116673 ABB 2CCF212236A0001 ZLSP950E102-3L Smissline TP Power bar 400A Busbar system 1 pc(s)
Description
The plug-in socket system SMISSLINE TP Power BAR for 400A contacts the plug-in protective devices on the external conductors L1, L2, L3 and N. The system ensures the load-free connection and disconnection of devices and components under voltage. Mmisline TP is fully finger-safe - IPXXB. Integrated auxiliary busbars LA and LB can be used for the supply of control circuits (auxiliary contact, etc.). Directly pluggable protection devices can be attached to the system at any position (within the grid dimension). Other DIN rail devices can be integrated into the system using a universal adapter. The complete protection against contact is ensured only with the SMISSLINE TP socket end piece.
