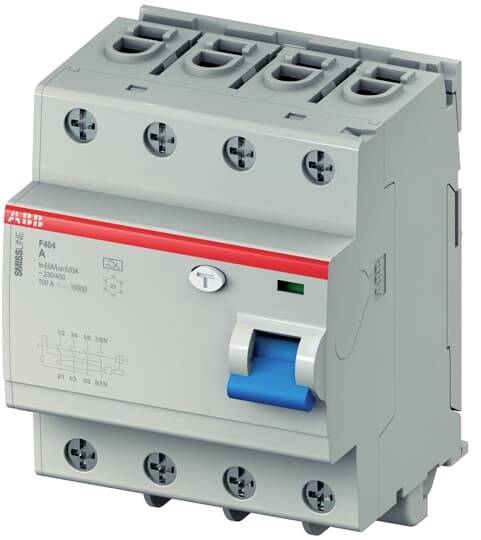

ABB 2CCF544110E0631 F404A-LF63/0.03 RCCB A 63 A 0.03 A 400 V
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Nominal voltage
400 V
Conductor bar
AC
69 mm
63 A
400 V
500 V
4
0.03 A
A
FALSE
1 kA
0.25 kA
2
4
FALSE
FALSE
Other
IP20
0-25 mm²
0-25 mm²
TRUE
TRUE
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3116760 ABB 2CCF544110E0631 F404A-LF63/0.03 RCCB A 63 A 0.03 A 400 V
Description
Residual current circuit breakers (RCCBs) of the F400 series provide personal and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. The residual current circuit-breakers of the series F400 ensure protection in case of sinusoidal AC currents and pulsating currents against earth. As well as fault protection (indirect contact protection), additional protection (with I∆N ≤ 30 mA) and fire protection (with I∆N ≤ 300 mA). It meets the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30). The contacts are made directly via the Smissline TP socket system.
