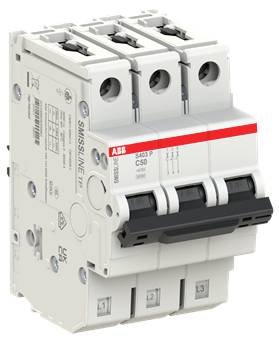

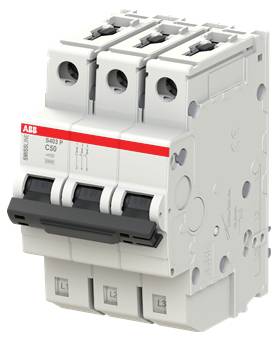

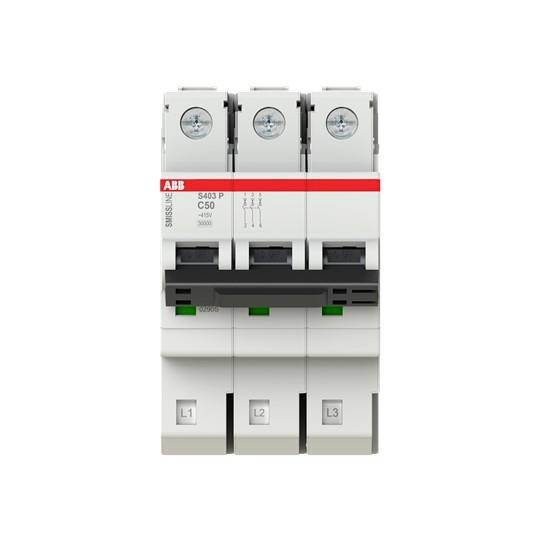

ABB 2CCG000393R0001 S403P-C50 Circuit breaker 50 A 415 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
50 A
Nominal current
50 A
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- Nominal current - rounded value
50 A
- Nominal current
50 A
- Content
4 pc(s)
- Nominal voltage
415 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783073 ABB 2CCG000393R0001 S403P-C50 Circuit breaker 50 A 415 V
Description
The series S 400 circuit breakers protect cables and wires from overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530 They meet the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2. Their patented connection terminal provides simple and secure contact and handling by means of a printing plate. Wire cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The contacting occurs directly via the socket system and the outer conductor contact can be freely selected (L1, L2 or L3). The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the S 400 fit for worldwide use. Each device is subjected to three-fold intensive tests for quality and performance before delivery.
