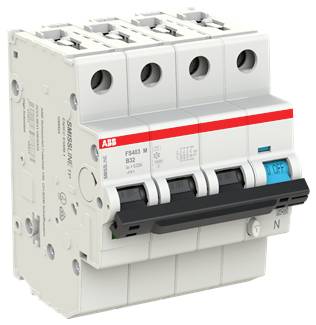

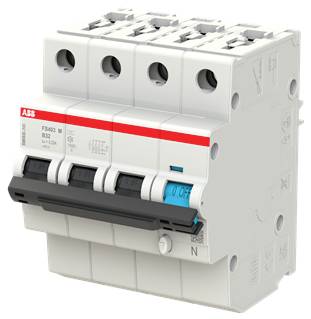

ABB 2CCG001717R0001 RCBO 32 A 0.03 A 415 V
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
32 A
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.03 A
- Content
1 pc(s)
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Switch-off capacity
10 kA
- Nominal voltage
415 V
- Type
undelayed
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786024 ABB 2CCG001717R0001 RCBO 32 A 0.03 A 415 V
Information
Information 3786024 ABB 2CCG001717R0001 RCBO 32 A 0.03 A 415 V
Description
FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with smooth DC fault current of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with I?n = 30 mA) and fire protection (with I?n = 300 mA). They comply with product standard IEC/EN 61009-1 (VDE 0664-20). The contact takes place directly via the Smissline TP plug-in base system and the outer conductor contact can be freely selected for single-phase devices (L1, L2 or L3)
