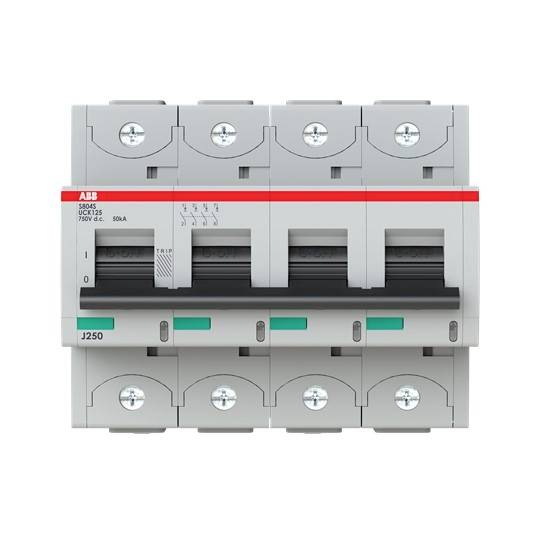

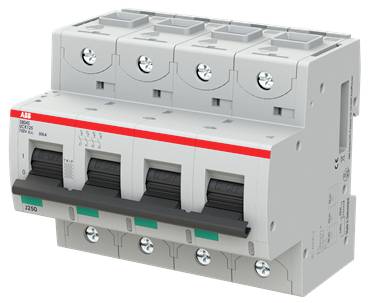

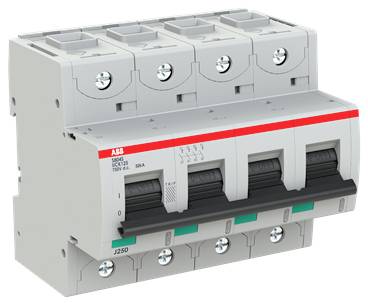

ABB 2CCG001901R0001 S804S-UCK125 Circuit breaker 125 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Nominal current - rounded value
125 A
Nominal current
125 A
Content
1 pc(s)
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Nominal current - rounded value
125 A
- Nominal current
125 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784788 ABB 2CCG001901R0001 S804S-UCK125 Circuit breaker 125 A
Description
The high performance circuit breakers of the series S800S-UC protect cables and wires from overload and short circuit. They have a rated short circuit breaking capacity of 50kA at 250V (single-pole), 500V (two-pole) and 750V (three- and four-pole) DC. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800S-UC complies with IEC/EN 60947-2 standard and enables the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive range of accessories makes it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800S-UC.
