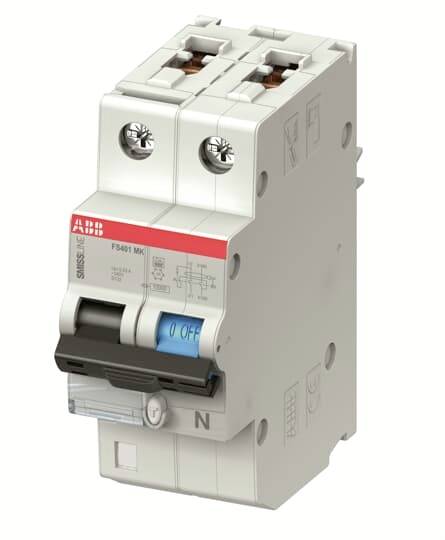

ABB 2CCL562310E1165 RCBO for mixed frequency bands 16 A 0.03 A
Product type
RCBO
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Nominal voltage (details)
240 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage (details)
240 V
- Product type
RCBO
- Release characteristics
B
- Differential current rating
0.03 A
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Model
for mixed frequency bands
AC
91 mm
16 A
240 V
B
500 V
0.03 A
F
3 kA
3
3
2
2
50/60 Hz
IP20
1
TRUE
25 kA
0-35 mm²
0-35 mm²
TRUE
FALSE
2
TRUE
4 kV
75 kA
Short-time delayed
10 kA
Documents & Downloads
Datasheet
Datasheet 3117051 ABB 2CCL562310E1165 RCBO for mixed frequency bands 16 A 0.03 A
Description
FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with smooth DC fault current of up to 10 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). They have a higher resistance to unwanted triggering by a short-term delay and can detect mixed frequency currents up to 1kHz. They comply with product standard IEC/EN 61009-1 (VDE 0664-20). The contact takes place directly via the Smissline TP plug-in base system and the outer conductor contact can be freely selected for single-phase devices (L1, L2 or L3)
