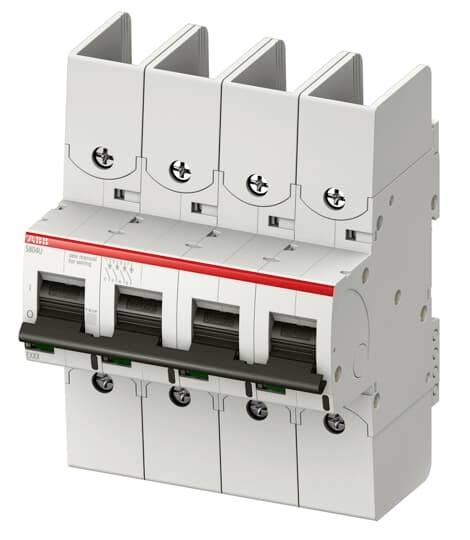

ABB 2CCS248356R0001 S804U-UCZ10 Circuit breaker 10 A 600 V
Product type
Circuit breaker
Number of pins
4
Release characteristics
Z
Nominal current - rounded value
10 A
Nominal current
10 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Release characteristics
Z
- Nominal current - rounded value
10 A
- Nominal current
10 A
- Content
1 pc(s)
- Nominal voltage
600 V
IP20
AC
82.5 mm
10 A
600 V
60-60 Hz
Z
1500 V
3
3
3
6
FALSE
IP20
4
FALSE
0-70 mm²
0-50 mm²
-25-60 °C
FALSE
TRUE
4
10 kA
10 kA
10 kA
10 kA
8 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3117100 ABB 2CCS248356R0001 S804U-UCZ10 Circuit breaker 10 A 600 V
User & Safety Instructions
User & Safety Instructions 3117100 ABB 2CCS248356R0001 S804U-UCZ10 Circuit breaker 10 A 600 V
Description
The high performance circuit breakers of the series S800U protect cables and wires from overload and short circuit. They have rated short-circuit breaking capacity of 50kA at 240/415V AC. In addition, it can be used for voltages up to 240V AC also according to UL489 with a breaking capacity of 50kA. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800U corresponds to the standards IEC/EN 60947-2 as well as UL489 and makes the application possible for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive range of accessories makes it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best protected with the S800U.
