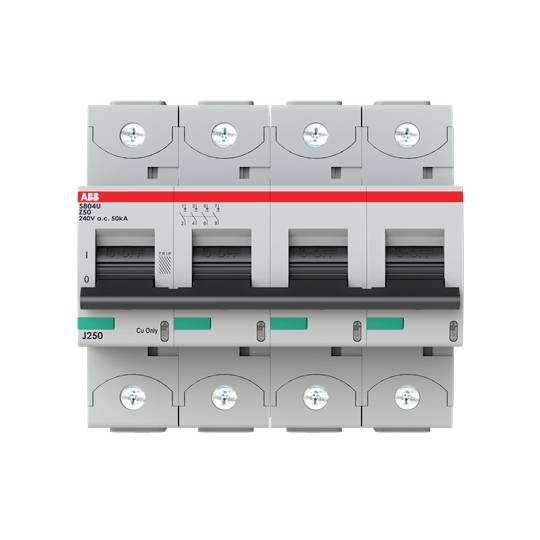

ABB 2CCS864017R0505 S804U-Z50 Circuit breaker 50 A 240 V
Product type
Circuit breaker
Number of pins
4
Release characteristics
Z
Nominal current - rounded value
50 A
Nominal current
50 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Release characteristics
Z
- Nominal current - rounded value
50 A
- Nominal current
50 A
- Content
1 pc(s)
- Nominal voltage
240 V
IP20
AC
82.5 mm
50 A
240 V
50-60 Hz
Z
690 V
3
3
2
6
FALSE
IP20
4
FALSE
0-70 mm²
0-50 mm²
-25-60 °C
FALSE
TRUE
4
40 kA
40 kA
50 kA
50 kA
8 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3117666 ABB 2CCS864017R0505 S804U-Z50 Circuit breaker 50 A 240 V
User & Safety Instructions
User & Safety Instructions 3117666 ABB 2CCS864017R0505 S804U-Z50 Circuit breaker 50 A 240 V
Description
High-power automatic circuit breaker to protect against overload and short-circuit of cable and leads. Fulfils the requirements of UL489 and IEC 60947-2 conductor cross-sections up to 70 mm² can be connected directly to the device. Safe potential separation according to IEC 60947-2.
Auxiliary and signal switches can be mounted on the device without additional wiring.
