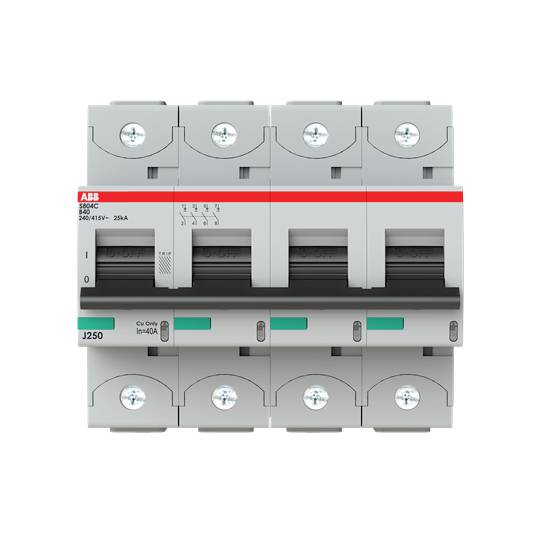

ABB 2CCS884001R0405 S804C-B40 Circuit breaker 40 A 400 V
Product type
Circuit breaker
Number of pins
4
Release characteristics
B
Nominal current - rounded value
40 A
Nominal current
40 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Release characteristics
B
- Nominal current - rounded value
40 A
- Nominal current
40 A
- Content
1 pc(s)
- Nominal voltage
400 V
IP20
AC/DC
82.5 mm
40 A
440 V
50-60 MHz
B
500 V
3
4
3
4
FALSE
14.8 W
IP20
4
FALSE
0-50 mm²
0-70 mm²
-25-60 °C
FALSE
TRUE
4
15 kA
15 kA
25 kA
25 kA
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3117785 ABB 2CCS884001R0405 S804C-B40 Circuit breaker 40 A 400 V
User & Safety Instructions
User & Safety Instructions 3117785 ABB 2CCS884001R0405 S804C-B40 Circuit breaker 40 A 400 V
Description
The high performance circuit breakers of the series S800C protect cables and wires from overload and short circuit. They have rated short-circuit breaking capacity of 25kA at 240/415V AC. It can also be used for voltages up to 400/690V AC and DC. It offers an equally effective protection against overload with its thermal release mechanism as with its electromechanical release mechanism against short circuit. The S800C complies with the IEC/EN 60947-2 standard and enables the application for industrial purposes. Numerous approvals make it fit for worldwide use and the extensive range of accessories makes it even more comfortable to use. Due to the very fast arc extinguishing, your installation is best secured with the S800C.
