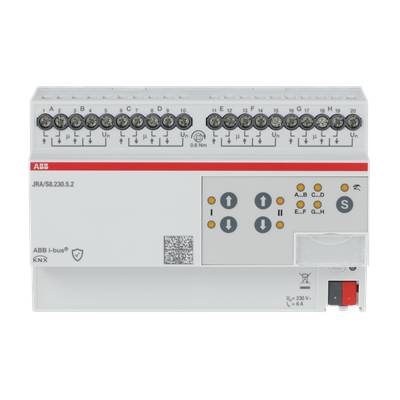

ABB 2CDG110290R0011 Blinds actuator JRA/S8.230.5.2
EAN:
Part number:
Item no:
Technical specifications
- Product type
Blinds actuator
- Max. switching capacity
1380 W
IP20
- Mounting type
DIN rail
- Width
300 mm
- Height
200 mm
- Dim
(L x W x H) 400 cm x 300 mm x 200 mm
- Hub
Not required, optional for remote access
- Weight
500 g
- Features
LED display
- Length
400 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783910 ABB 2CDG110290R0011 Blinds actuator JRA/S8.230.5.2
Description
For controlling 8 independent groups of two 230 V AC drives each for positioning blinds, shutters, awnings and other hangers as well as for controlling doors, windows and ventilation flaps. With automatic vehicle time determination and manual operation directly at the device No auxiliary voltage required. The outputs are electro-mechanically locked against each other. Functions: Up/down, disk adjustment/stop, position and scene control, safety functions, automatic sun protection and heating/cooling, Status messages. : KNX
