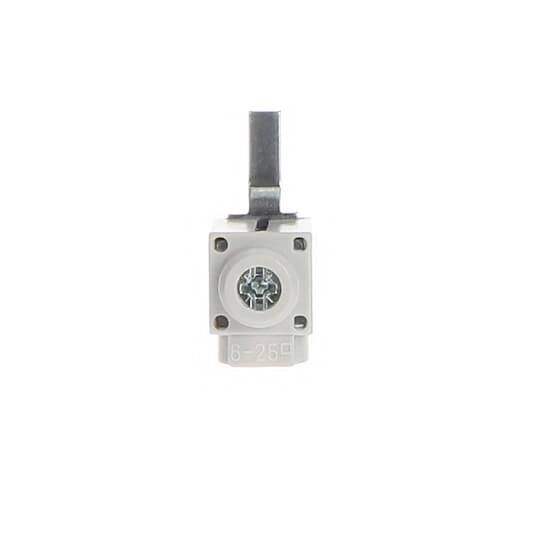

ABB 2CDL200011R2515 AST25/15S terminal 6-25QMM, pin 15x4mm, connecting line Terminal 1 pc(s)

The feed terminals are single-pole. When several terminals are combined next to each other, e.g. in multiphase networks or for DC applications, the rules of isolation coordination (e.g. air. And tracking distances) must be observed and must be observed. To ensure protection against contact, the pin length of the connection terminal must not be larger than the maximum insertion depth of the device terminal. Regardless of the nominal current of the connection terminals, the maximum current carrying capacity of the device terminal (e.g. circuit breaker) must not be exceeded.
