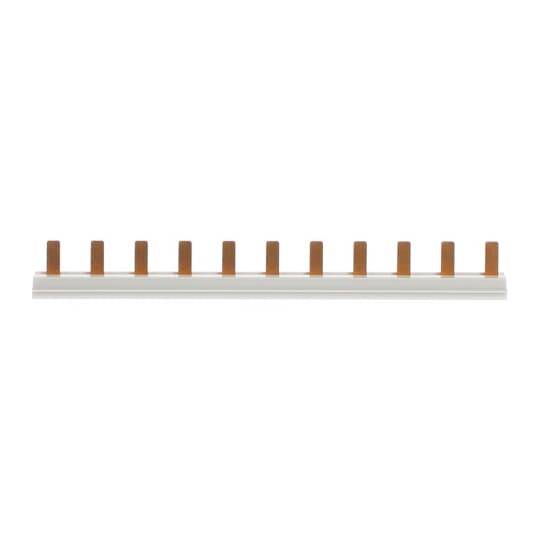

ABB 2CDL210001R3011 Phase rail 1Ph.,11Pins,30QMM PS1/11/30 Phase modifier 30 mm² 120 A 100 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Type
Insulated
Operating voltage
690 V
Cross section
30 mm²
Number of pins
11
Technical specifications
- Type
Insulated
- Product type
Phase modifier
- Operating voltage
690 V
- Cross section
30 mm²
- Number of pins
11
- Nominal current
120 A
- Nominal current - rounded value
120 A
- No. of partitions
11
- Content
100 pc(s)
- Length
192 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783124 ABB 2CDL210001R3011 Phase rail 1Ph.,11Pins,30QMM PS1/11/30 Phase modifier 30 mm² 120 A 100 pc(s)
Description
ABB phase rails enable the safe and economical cross wiring of circuit breakers, residual current protective devices (FI) and other installation devices The phase rail PS1/11/30 comes with a phase of 30 mm². The phase rail can be used for a cross-wiring of a total of 11TE. The phase rail can be shortened to individual lengths.
