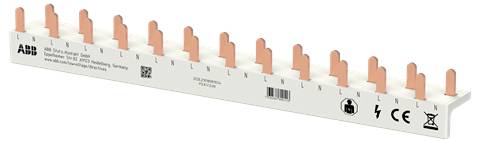

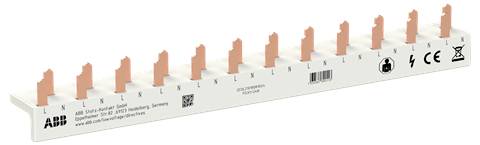

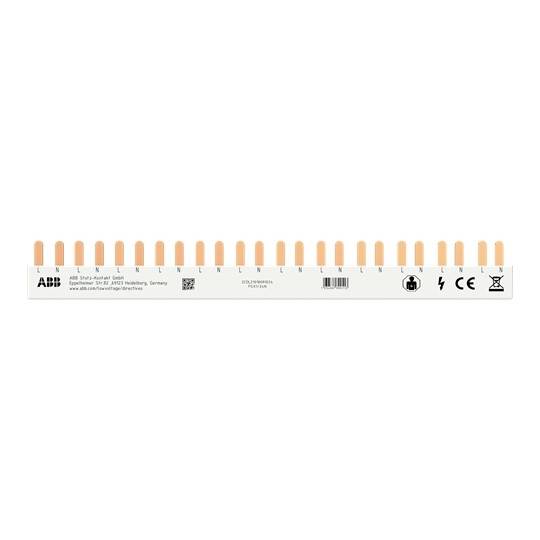

ABB 2CDL210180R1024 Phase rail 1P+N, 24pins, 10QMM PSX1/24N Phase modifier Grey 10 mm² 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Compatible with (details)
Devices with N-conductor
Factory colour
Grey
Cross section
10 mm²
Number of pins
2
Technical specifications
- Product type
Phase modifier
- Compatible with (details)
Devices with N-conductor
- Factory colour
Grey
- Cross section
10 mm²
- Number of pins
2
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
12
- Content
1 pc(s)
- Length
23 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785180 ABB 2CDL210180R1024 Phase rail 1P+N, 24pins, 10QMM PSX1/24N Phase modifier Grey 10 mm² 63 A 1 pc(s)
Description
ABB-FlexLine® phase rails enable the safe and economical cross-wiring of circuit breakers, fault-current protection devices and other modular ABB-FlexLine® installation devices. The FlexLine® phase rails can be used regardless of the choice of installation devices and their arrangement. 1-phase + N and 3-phase + N types are available in various module widths. For a correct selection of phase bars, you only need to ensure that the application is 1-phase or 3-phase. FlexLine® phase rails accelerate installation and save up to 50% time thanks to our push-in technology without the need for a screwdriver or other tools.
