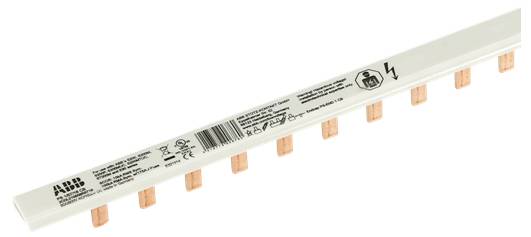

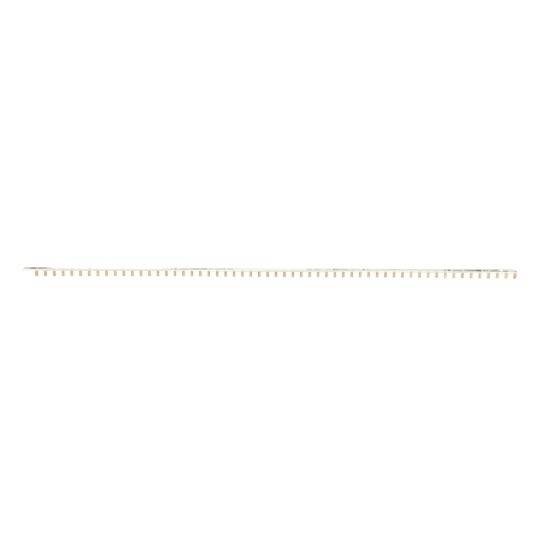

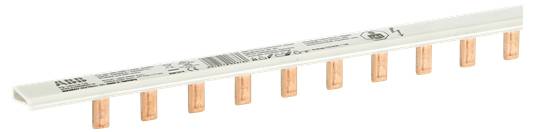

ABB 2CDL210508R5718 Phase Rail 1Ph., 57Pins, 18qmm PS 1/57/18 CB Phase modifier Grey 18 mm² 80 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Type
Insulated
Operating voltage
600 V
Factory colour
Grey
Cross section
18 mm²
Technical specifications
- Type
Insulated
- Product type
Phase modifier
- Operating voltage
600 V
- Factory colour
Grey
- Cross section
18 mm²
- Number of pins
57
- Nominal current
80 A
- Nominal current - rounded value
80 A
- No. of partitions
57
- Content
1 pc(s)
- Length
1005 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785176 ABB 2CDL210508R5718 Phase Rail 1Ph., 57Pins, 18qmm PS 1/57/18 CB Phase modifier Grey 18 mm² 80 A 1 pc(s)
Description
The CB series phase rails meet the requirements of UL508. They are therefore suitable for a safe and economical cross-wiring of circuit breakers, residual-current protective devices and other modular installation devices. For the correct selection, the following points must be observed: - Number of phases - Number of pins - Cross-section per phase - Use of auxiliary switches (H)
