Name: ABB 2CDL230001R1048 PS3/48h PHASE TRACK 3Ph.,48Pins,10qmm,WITH HK Phase modifier 10 mm² 63 A 1 pc(s)
Brand: ABB
SKU: 2328814

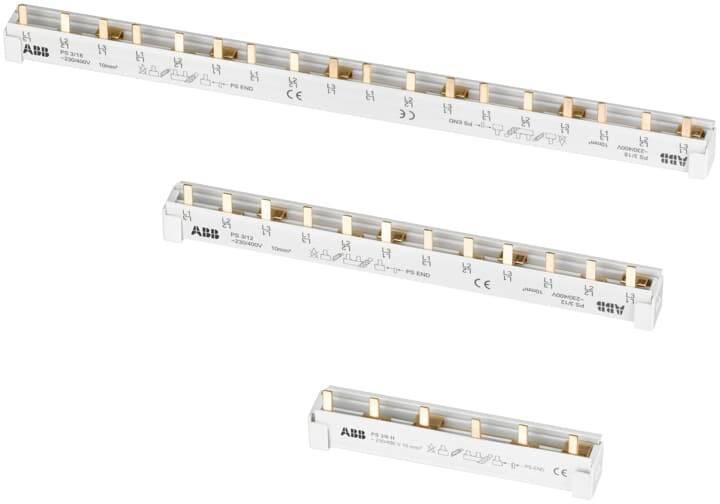

'Three ABB electrical busbars of varying lengths, each with multiple copper terminals for electrical distribution.'

Product type

Phase modifier

Cross section

10 mm²

Nominal current

63 A

Nominal current - rounded value

63 A

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of division units: -
Rated short-term current strength ICW: 25
Rated surge voltage 4.5
Suitable for number of devices: 16
Suitable for devices with auxiliary switch: Yes
Suitable for devices with N-conductor: No.
Isolated: Yes
Max. Rated operating voltage UE: 690
Cross section: 10
Division dimension: 17.5
Conditional rated short-circuit current IQ 25
Rated continuous current IU: 63
Electrical connection type: Pin
Number of pins 48
Length 980
Number of phases: 3

Product type: Phase modifier

Cross section: 10 mm²

Nominal current: 63 A

Nominal current - rounded value: 63 A

Content: 1 pc(s)

Length: 980 mm

: Grey

: TRUE

: 3

: 63 A

: 48

: 975 m

: 25 kA

: 56

: 4.5 kV

: Pin

: 25 kA

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Cross section

ABB 2CDL010001R1057 PS1/57-S9 PHASE TRACK 1Ph.,57Pins,10qmm,FOR S9 Phase modifier 10 mm² 63 A 1 pc(s)

Item no:2324797

Unavailable

Conrad Electronic

63 A

10 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010001R1637 PS1/37/16INZ PHASE TRACK 37x1P,16qmm,PIN,FOR INZ Phase modifier 16 mm² 80 A 690 V 1 pc(s)

Item no:2328365

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010007R1603 PS 1/3/16 Limitor TNC Phase bar 1-Ph., 16 qmm, for Limitor TNC-Net Phase modifier 16 mm² 80 A 690 1 pc(s)

Item no:2324798

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010011R1012 PS 1/12N S9 PHASE TRACK 1-Ph.,12 Pins,10qmm,N/BLUE,FOR S9 Phase modifier 10 mm² 63 A 1 pc(s)

Item no:2329062

Unavailable

Conrad Electronic

63 A

10 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010011R1057 PS1/57N-S9 PHASE TRACK 1Ph.,57Pins,10qmm,N/BLUE,FOR S9 Phase modifier 10 mm² 63 A 1 pc(s)

Item no:2329893

Unavailable

Conrad Electronic

63 A

10 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010017R1604 PS 1/4/16 Limitor TT Phase bar 1-Ph., 16 qmm, for Limitor TT-Net Phase modifier 16 mm² 80 A 690 V 1 pc(s)

Item no:2325205

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010101R1639 16 mm² 80 A 690

Item no:2324799

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL010101R3039 PS 1/39/30 ILTS-E phase rail 1-Ph., 39 pins, 30 qmm, for ILTS-E. Phase modifier 30 mm² 120 A 690 V 1 pc(s)

Item no:2327374

Unavailable

Conrad Electronic

120 A

30 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL030001R1639 PS3/39/16INZ PHASE TRACK 13x3P,16qmm,PIN,FOR INZ Phase modifier 16 mm² 80 A 690 V 1 pc(s)

Item no:2329524

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

ABB 2CDL030101R1639 PS 3/39/16 ILTS-E Phase bar 3-Ph., 39 Pins, 16 qmm, for ILTS-E. Phase modifier 16 mm² 80 A 690 V 1 pc(s)

Item no:2326596

Unavailable

Conrad Electronic

80 A

16 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2328814 ABB 2CDL230001R1048 PS3/48h PHASE TRACK 3Ph.,48Pins,10qmm,WITH HK Phase modifier 10 mm² 63 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2328814 ABB 2CDL230001R1048 PS3/48h PHASE TRACK 3Ph.,48Pins,10qmm,WITH HK Phase modifier 10 mm² 63 A 1 pc(s)

Description

ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual current protection devices and other modular installation devices. For correct phase rail selection, the following must be observed: Terminal type (double terminal or cage terminal), number of terminals (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current protective devices or modular installation devices), combinations of the different device types, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rail cross-section (current carrying capacity), number of modules (selection of standard phase rails or abbreviated phase rails)
