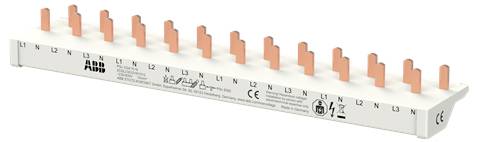

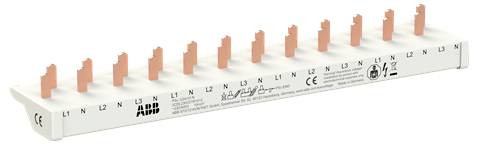

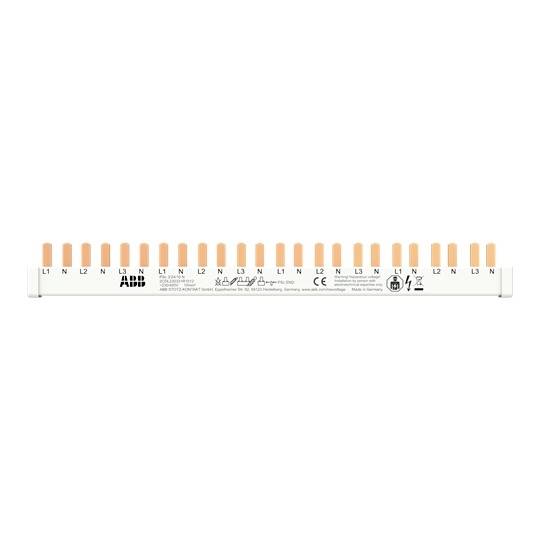

ABB 2CDL230331R1012 Phase rail 3Ph, 24pins 10qmm PSC 3/24/10 N Phase modifier 10 mm² 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Type
Insulated
Compatible with (details)
Devices with N-conductor
Operating voltage
400 V
Cross section
10 mm²
Technical specifications
- Type
Insulated
- Product type
Phase modifier
- Compatible with (details)
Devices with N-conductor
- Operating voltage
400 V
- Cross section
10 mm²
- Number of pins
12
- Dim
(L x W x H) 218 x 100 x 50 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of partitions
12
- Content
1 pc(s)
- Width
100 mm
- Height
50 mm
- Length
218 mm
- Depth
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785186 ABB 2CDL230331R1012 Phase rail 3Ph, 24pins 10qmm PSC 3/24/10 N Phase modifier 10 mm² 63 A 1 pc(s)
Description
Phase rail for cross-wiring of the narrow series DS301C. The phase rails are available in 1+N and 3+N versions. In addition, shortened versions are available in 12TE as well as by the meter.
