ABB 2CDL240101R1658 PS4/58/16N PHASE TRACK 4PH.,58Pins,16qmm Phase modifier Grey 16 mm² 80 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Phase modifier
Factory colour
Grey
Cross section
16 mm²
Nominal current
80 A
Nominal current - rounded value
80 A
Datasheet (PDF)
Technical specifications
- Number of division units: -
- Rated short-term current strength ICW: 25
- Rated surge voltage 4.5
- Suitable for number of devices: 14
- Suitable for devices with auxiliary switch: No.
- Suitable for devices with N-conductor: Yes
- Isolated: Yes
- Max. Rated operating voltage UE: 690
- Cross section: 16
- Division dimension: 17.5
- Conditional rated short-circuit current IQ 25
- Rated continuous current IU: 80
- Electrical connection type: Pin
- Number of pins 58
- Length 1020
- Number of phases: 4
- Product type
Phase modifier
- Factory colour
Grey
- Cross section
16 mm²
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Length
1020 mm
Grey
TRUE
4
80 A
58
1019 m
25 kA
58
4.5 kV
Pin
25 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329897 ABB 2CDL240101R1658 PS4/58/16N PHASE TRACK 4PH.,58Pins,16qmm Phase modifier Grey 16 mm² 80 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2329897 ABB 2CDL240101R1658 PS4/58/16N PHASE TRACK 4PH.,58Pins,16qmm Phase modifier Grey 16 mm² 80 A 1 pc(s)
Description

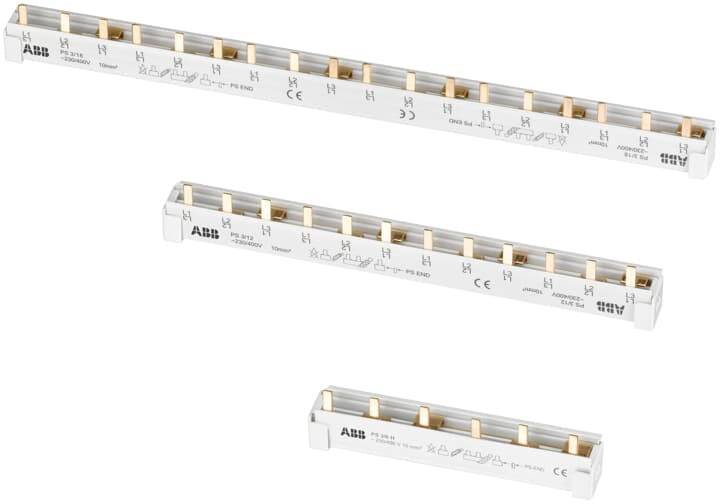

ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual current protection devices and other modular installation devices. For correct phase rail selection, the following must be observed: Terminal type (double terminal or cage terminal), number of terminals (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current protective devices or modular installation devices), combinations of the different device types, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rail cross-section (current carrying capacity), number of modules (selection of standard phase rails or abbreviated phase rails)
