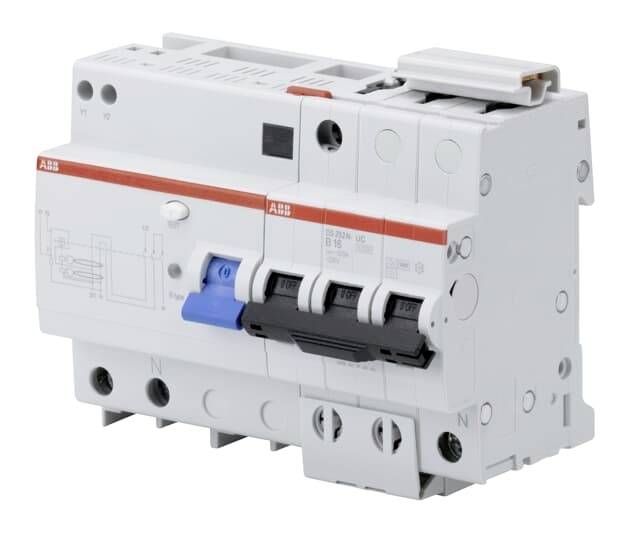

Name: ABB 2CDR272568R3325 RCBO RCD (all types of current) 32 A 0.03 A
Brand: ABB
SKU: 3113544

Technical specifications

Nominal voltage (details): 230 V

Product type: RCBO

Release characteristics: B

Differential current rating: 0.03 A

Content: 1 pc(s)

Nominal current: 32 A

Nominal current - rounded value: 32 A

Model: RCD (all types of current)

: AC/DC

: 123 mm

: 32 A

: 230 V

: B

: 500 V

: 0.3 A

: B

: 3 kA

: 3

: 3

: 2

: 7

: Other

: IP20

: 2

: FALSE

: 10 kA

: 0.75-25 mm²

: 10-35 mm²

: FALSE

: -25-55 °C

: FALSE

: 2

: FALSE

: 4 kV

: 10 kA

: Undelayed

: 10 kA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3113544 ABB 2CDR272568R3325 RCBO RCD (all types of current) 32 A 0.03 A

Description

FI/LS combinations (RCBOs) offer personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. The FI/LS combinations of the series DS250N-UC guarantee protection in case of sinusoidal AC currents, pulsating currents against earth and smooth DC fault currents with different (high-/)frequencies. As well as error protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and protection against electrically ignited fires (with IΔn ≤ 300 mA). They fulfill the product standards for type A DIN EN 61009-1 (VDE 0664-20) Annex G and type B DIN EN 60947-2 (VDE 0660-101).
The DS250N-UC series are special FI/LS combinations for use in the field of DC local trains, especially within the overhead line area. They have been developed in accordance with the above product standards and are exactly in line with the recommendations of VDV document 509 (10/08): "Use of residual current (FI) protective circuits in electrical energy systems of DC local trains".
The DS250N-UC consists of an all current-sensitive FI block (type B) and an LS part of one or three AC phase conductors, as well as two opposing UC-type neutral poles – for the polarity-independent switch-off of direct currents (N-UC: N pole for universal current).
This means that the high equalizing direct currents between the neutral conductor of the general grid and the DC earth (the return conductor of the DC rail network) – or vice versa – can be safely switched off.

This text is machine translated.
