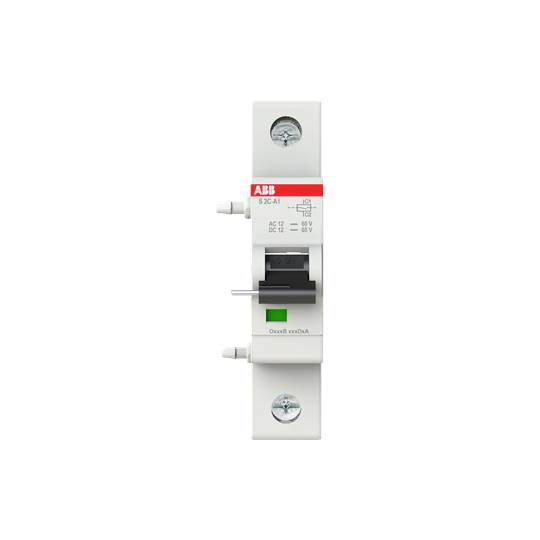

ABB 2CDS200909R0001 S2C-A1 Shunt trip release 1 pc(s)
Product type
Shunt trip release
Content
1 pc(s)
Type
S2C-A1
Rated voltage
230 V
Installed at the factory
FALSE
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Shunt trip release
- Content
1 pc(s)
- Type
S2C-A1
230 V
FALSE
0.75
0
Miniature circuit breaker (MCB)
Shunt release (for power circuit breaker)
AC/DC
0
0
0
FALSE
45 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3123587 ABB 2CDS200909R0001 S2C-A1 Shunt trip release 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3123587 ABB 2CDS200909R0001 S2C-A1 Shunt trip release 1 pc(s)
Description
For remote triggering (switch-off) of the circuit breaker, with self-interruption within 10 ms. Suitable for S200 series circuit breakers, FI/LS combinations DS200 (DDA200 + S200) and SD200 series switch disconnectors.
The working current release possesses a relay coil with an integrated contact, which separates the coil from the actuating voltage after trigger e.g. of the circuit breaker, so no further current flows even with continuously applied actuation voltage.
This text is machine translated.
The working current release possesses a relay coil with an integrated contact, which separates the coil from the actuating voltage after trigger e.g. of the circuit breaker, so no further current flows even with continuously applied actuation voltage.
This text is machine translated.
