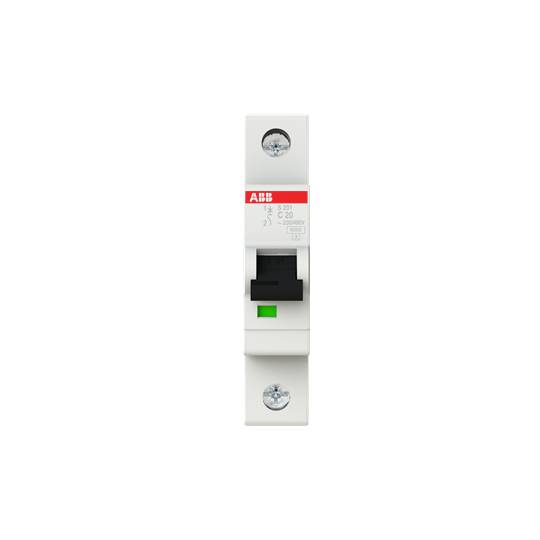

ABB 2CDS251001R0204 S201-C20 Circuit breaker 20 A 230 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
C
Nominal current - rounded value
20 A
Nominal current
20 A
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
C
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Factory colour
Multicolour
- Dim
(L x W x H) 69 x 17.5 x 88 mm
- Content
1 pc(s)
- Nominal voltage
230 V
- Width
17.5 mm
- Height
88 mm
- Length
69 mm
IP20
- Weight
0
AC/DC
69 mm
20 A
230 V
50-60 MHz
C
440 V
3
3
3
1
FALSE
2.5 W
IP20
1
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
1
6 kA
6 kA
10 kA
10 kA
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3113566 ABB 2CDS251001R0204 S201-C20 Circuit breaker 20 A 230 V
User & Safety Instructions
User & Safety Instructions 3113566 ABB 2CDS251001R0204 S201-C20 Circuit breaker 20 A 230 V
Description
The series S 200 circuit breakers protect cables and wires from overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530 They comply with the construction regulations DIN VDE 0641-11 and/or IEC/EN 60898-1, DIN VDE 0660-101 OR IEC/EN60947-2 AND UL1077. Their patented connection terminal provides simple and secure contact and handling by means of a printing plate. For better visibility of wiring, the connection opening for wires is above the connection opening for the phase rail. Wire cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the S 200 fit for worldwide use. Each device is subjected to three-fold intensive tests for quality and performance before delivery.
