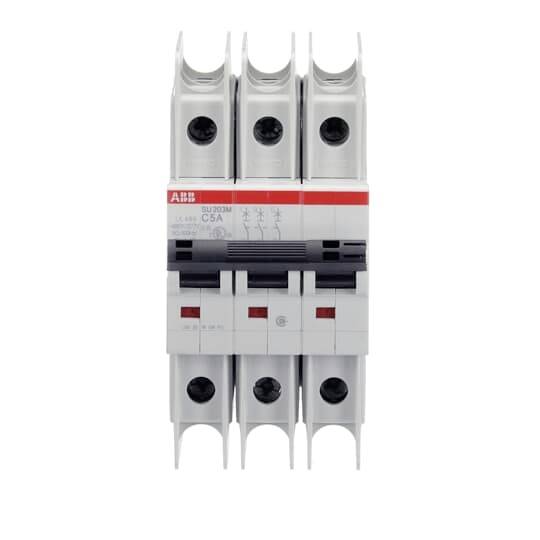

ABB 2CDS273337R0054 SU203M-C5 Circuit breaker 5 A 400 V
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
5 A
Nominal current
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- Nominal current - rounded value
5 A
- Nominal current
5 A
- Content
1 pc(s)
- Nominal voltage
400 V
IP20
AC
69 mm
5 A
400 V
50-60 Hz
C
440 V
3
3
3
3
FALSE
IP20
3
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
3
11.2 kA
15 kA
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3114699 ABB 2CDS273337R0054 SU203M-C5 Circuit breaker 5 A 400 V
User & Safety Instructions
User & Safety Instructions 3114699 ABB 2CDS273337R0054 SU203M-C5 Circuit breaker 5 A 400 V
Description
The SU 200 M series circuit breakers protect cables and wires against overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0660-101 and/or IEC/EN60947-2 and UL489 and/or CSA 22.2 No. 5. Their patented connection terminal provides simple and secure contact and handling by means of a printing plate. For better visibility of wiring, the connection opening for wires is above the connection opening for the phase rail. Wire cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything that you need WAS for your installation tasks. The combination of approvals according to UL489, CSA 22.2 No. 5 and IEC/EN60947-2 make this device a globally applicable device for high requirements and is subjected before delivery to three-fold intensive tests for quality and performance.
