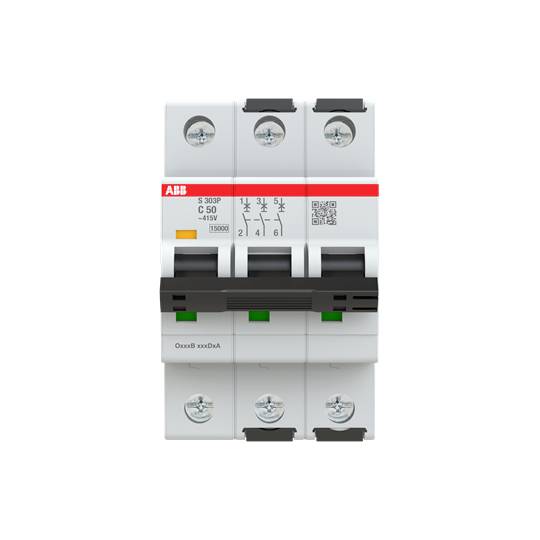

ABB 2CDS383001R0504 S303P-C50 Circuit breaker 50 A 415 V
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
50 A
Nominal current
50 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- Nominal current - rounded value
50 A
- Nominal current
50 A
- Content
1 pc(s)
- Nominal voltage
415 V
IP20
AC/DC
69 mm
50 A
415 V
50-60 Hz
C
500 V
3
4
3
3
FALSE
IP20
3
FALSE
0.75-35 mm²
0.75-25 mm²
-40-70 °C
FALSE
TRUE
3
25 kA
6 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3115402 ABB 2CDS383001R0504 S303P-C50 Circuit breaker 50 A 415 V
User & Safety Instructions
User & Safety Instructions 3115402 ABB 2CDS383001R0504 S303P-C50 Circuit breaker 50 A 415 V
Description
The S300P series circuit breakers protect cables and wires from overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 and/or IEC/EN 60898-1, DIN VDE 0660-101 OR IEC/EN60947-2 AND UL1077. Their patented connection terminal provides simple and secure contact and handling by means of a printing plate. The assembly and dismantling on the DIN rail is tool-free and also possible from the bus bars. The circuit breakers have a front-sided fault indicator to differentiate between tripping in the event of a fault and manual switching off. The detailed technical documentation can be quickly accessed via a QR code on the front of the device. Numerous approvals and a comprehensive range of accessories make the S300P ready for worldwide use in demanding applications.
