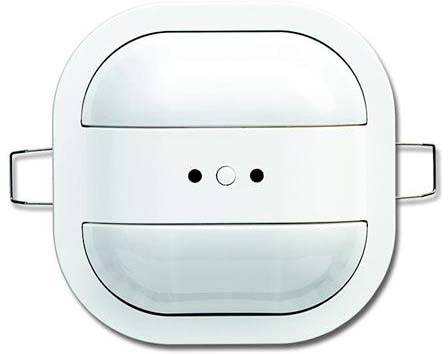

ABB 2CKA006132A0350 Motion detector 6131/40-24-500

Capturing range (at 6 m and 12 m mounting height): Circular. Walking persons Ø: Max. 18 m and max. 24 m. Installation height 23 mm. With 2 channels. For selective switch-on and switching of light bands depending on the ambient brightness. Use of the device as a motion detector. Detector application with 2-level cut-off function. Detector application with integrated surveillance functions. Constant light switch with up to 2 independent channels. Constant light switch with max. 2 outputs for the brightness-dependent switching of two light bands in the room. With integrated KNX bus coupler. The programming button can be activated with the IR hand-held transmitter 6010-25(-500). Suitable for suspended ceilings with panel thickness of 9 to 25 mm. Installation hole size: Ø 68 mm. Suitable for surface mounting in combination with an AP housing. Does not fit in the British Standard and VDE flush-mounted socket. Recommendation: Halox-O flush-mounted box from Kaiser (Art.-No. 1290-40) with appropriate cover (1290-47 or 1290-85 for exposed concrete) or IBtronic H120-68 from Spelsberg (Art.-No. 97600501).
