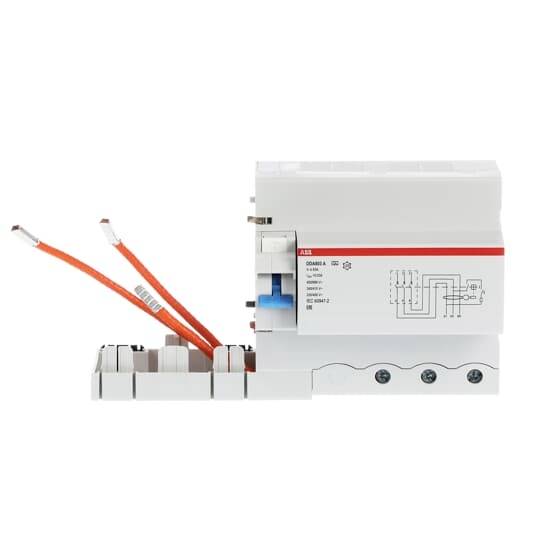

ABB 2CSB803101R1630 DDA803A-63/0,03 RCCB 63 A 0.03 A 690 V
Product type
RCCB
Number of pins
3
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Nominal current
63 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCCB
- Number of pins
3
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)
- Nominal voltage
690 V
63 A
690 V
3
FALSE
0 ms
A
0.25 kA
0.03-0.03 A
195-690 V
13.5 W
50/60 Hz
IP2X
6-50 mm²
6-70 mm²
FALSE
-25-60 °C
FALSE
FALSE
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118829 ABB 2CSB803101R1630 DDA803A-63/0,03 RCCB 63 A 0.03 A 690 V
Description
The FI-Block (RCU) is for customer-side mounting with high-performance circuit breakers of the S800 series. The resulting FI/LS combinations (RCBOs) provide property protection and protection against electrically ignited fires. They protect 2P, 3P or 4P circuits against overload and short-circuit currents, protect against sinusoidal AC currents and pulsating currents with smooth DC fault current up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). They comply with the product standard IEC/EN 60947-2. Industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks.
