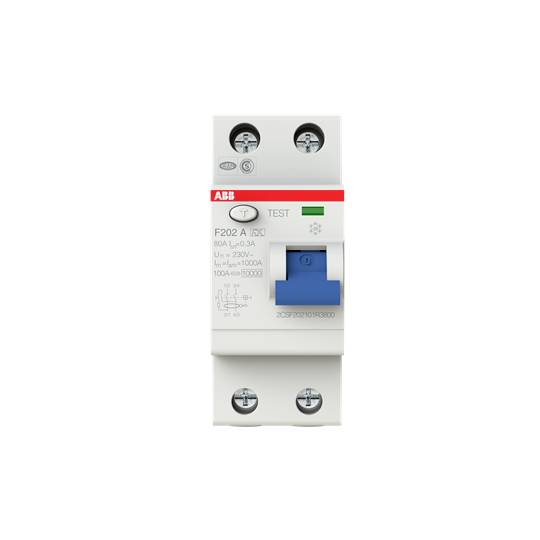

ABB 2CSF202101R3800 F202A-80/0,3 RCCB A 80 A 0.3 A 230 V
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.3 A
Nominal current - rounded value
80 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.3 A
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Nominal voltage
230 V
DIN rail
AC
69 mm
80 A
230 V
500 V
2
0.3 A
A
FALSE
1 kA
2
2
FALSE
FALSE
Other
IP2X
35-35 mm²
0-35 mm²
TRUE
TRUE
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118857 ABB 2CSF202101R3800 F202A-80/0,3 RCCB A 80 A 0.3 A 230 V
Description
Residual current circuit breakers (RCCs) provide personal protection and property protection as well as protection from electrical fires according to DIN VDE 0100-410 and DIN VDE 0100-530. The residual current circuit-breakers of series F200 ensure protection in case of sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They meet the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A up to 100 A UL 1053. They are used in domestic, commercial and industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the F200 ready for worldwide use.
