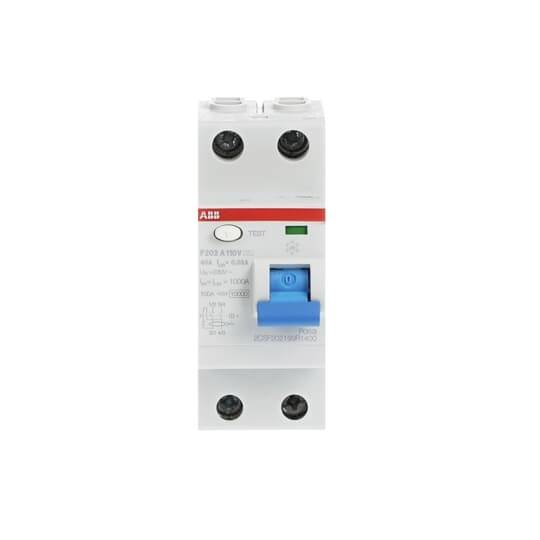

ABB 2CSF202199R1400 F202A-40/0,03-110V RCCB 40 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Differential current rating
0.03 A
Nominal current - rounded value
40 A
Nominal current
40 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Differential current rating
0.03 A
- Nominal current
40 A
- Nominal current - rounded value
40 A
- Content
1 pc(s)
- Nominal voltage
230 V
DIN rail
AC
69 mm
40 A
230 V
500 V
2
0.03 A
A
FALSE
1 kA
2
2
FALSE
FALSE
Other
IP2X
25-25 mm²
0-25 mm²
TRUE
TRUE
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118863 ABB 2CSF202199R1400 F202A-40/0,03-110V RCCB 40 A 0.03 A 230 V
Description
Residual current circuit breakers (RCCs) provide personal protection and property protection as well as protection from electrical fires according to DIN VDE 0100-410 and DIN VDE 0100-530. The residual current circuit-breakers of series F200 ensure protection in case of sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They are mainly used in commercial and industrial applications. The extensive range of accessories offers you everything that you need WAS for your installation tasks.
The F200 A 110 V series has no VDE approval and can be used especially for 110 V AC to 230/400 V AC applications. They meet the product standards IEC 61008-1, IEC 61008-2-1. The approvals are: CCC and UL 1053.
This text is machine translated.
The F200 A 110 V series has no VDE approval and can be used especially for 110 V AC to 230/400 V AC applications. They meet the product standards IEC 61008-1, IEC 61008-2-1. The approvals are: CCC and UL 1053.
