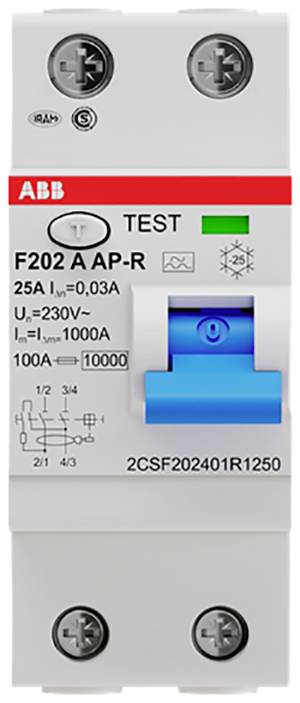

ABB 2CSF202401R1250 F202 A-25/0,03 AP-R RCCB A 2-pin 25 A 0.03 A 230 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
A
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
A
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
1 pc(s)
- Nominal voltage
230 V
- Depth
69 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318916 ABB 2CSF202401R1250 F202 A-25/0,03 AP-R RCCB A 2-pin 25 A 0.03 A 230 V
User & Safety Instructions
User & Safety Instructions 2318916 ABB 2CSF202401R1250 F202 A-25/0,03 AP-R RCCB A 2-pin 25 A 0.03 A 230 V
Description
Residual current protective devices (RCCBs) offer personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series residual current circuit breakers provide protection for sinusoidal alternating currents and pulsating currents with smooth DC residual current of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They meet the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A to 100 A UL 1053. Applications include domestic, commercial and industrial applications. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the F200 fit for worldwide use. Optimum compromise between safety and business continuity thanks to the interference immunity with surge current strength (surge current form 8/20 μs) = 3000 A against accidental triggering and 10 ms short-term delay.
This text is machine translated.
This text is machine translated.
