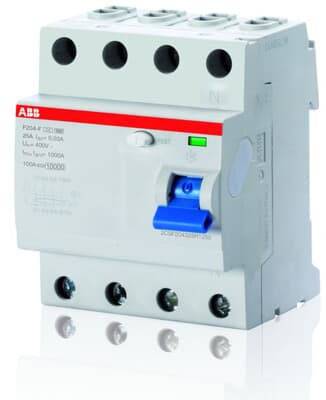

ABB 2CSF204325R1630 F204 F-63/0,03 RCCB F 4-pin 63 A 0.03 A 400 V
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
F
Differential current rating
0.03 A
Nominal current - rounded value
63 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
4
- Release characteristics
F
- Differential current rating
0.03 A
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
69 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318736 ABB 2CSF204325R1630 F204 F-63/0,03 RCCB F 4-pin 63 A 0.03 A 400 V
Description
Residual current protective devices (RCCBs) offer personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series residual current circuit breakers provide protection against sinusoidal alternating currents and pulsating currents against earth. As well as fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They meet the product standards for RCDs type A IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for type F DIN EN 62423 (VDE 0664-40). Applications include domestic, commercial and industrial applications. The extensive range of accessories offers you everything was needed for your installation tasks. Optimum compromise between safety and business continuity thanks to the interference resistance against unwanted triggering and 10 ms short-term delay. The F200 F are mixed frequency sensitive especially for single-phase electronic consumers with frequency converters, with a frequency range of 0...1 kHz for recording the fault current and also record pulsating fault currents with a DC component up to 10 mA.
