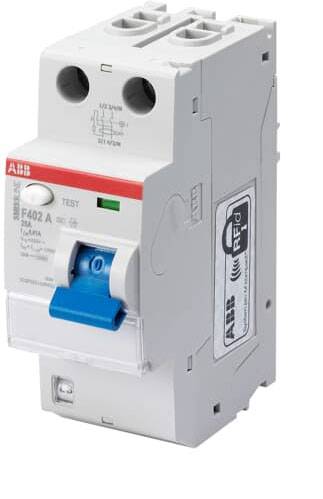

ABB 2CSF502110R1250 F402 25 A30 RCCB F 2-pin 25 A 0.03 A 230
EAN:
Part number:
Item no:
Product type
RCCB
Number of pins
2
Release characteristics
F
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Number of pins
2
- Release characteristics
F
- Differential current rating
0.03 A
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Content
1 pc(s)
- Nominal voltage
230
- Depth
69 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2320701 ABB 2CSF502110R1250 F402 25 A30 RCCB F 2-pin 25 A 0.03 A 230
User & Safety Instructions
User & Safety Instructions 2320701 ABB 2CSF502110R1250 F402 25 A30 RCCB F 2-pin 25 A 0.03 A 230
Description
Residual current circuit breakers (RCCBs) of the F400 series offer personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F400 series residual current circuit breakers provide protection against sinusoidal alternating currents and pulsating currents against earth. As well as fault protection (protection against indirect contact), additional protection (with I∆n ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). They comply with the product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30). The contact is made directly via the socket system Smissline TP.
