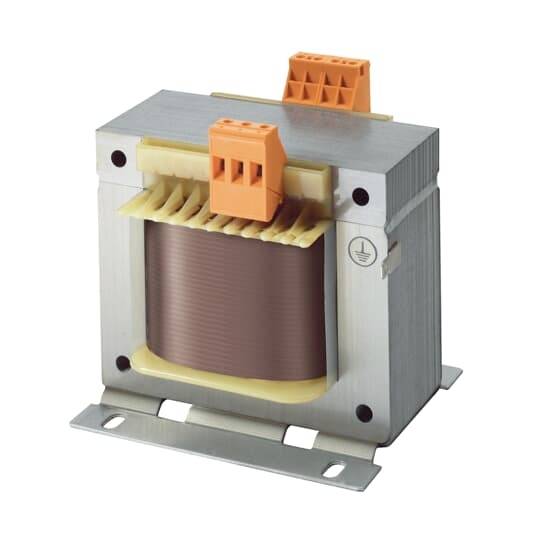

ABB 2CSM207203R0801 Control transformer 160 VA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
TM-C160/115-230 Single-phase control transformer, 160VA, Sec. 115-230V AC
- 160 VA
Technical specifications
- Product type
Control transformer
- No. of outputs
2 x
- No. of inputs
1 x
160 VA
- Width
100 mm
- Height
89 mm
- Dim
(W x H) 100 mm x 89 mm
- Content
1 pc(s)
- Type
TM-C160/115-230
100 mm
89 mm
90 mm
TRUE
Copper
IP00
FALSE
FALSE
FALSE
FALSE
FALSE
F
FALSE
160 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112534 ABB 2CSM207203R0801 Control transformer 160 VA
User & Safety Instructions
User & Safety Instructions 3112534 ABB 2CSM207203R0801 Control transformer 160 VA
Description
Single phase control transformer for continuous supply of control circuits, for example commands, signaling, interlocks, etc. Supply on the primary side with 230V/400V AC with a rated output depending on type from 50 VA to 2500 VA. Double secondary output with 12-24 V or 115-230 V and each full power tapping at all outputs. Tested according to CEI EN 61558-2-2.
