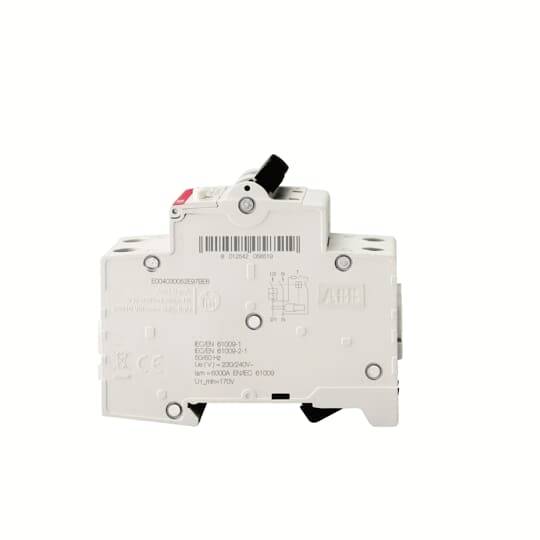

Name: ABB 2CSR255188R1137 RCBO 1-phase 13 A 0.03 A
Brand: ABB
SKU: 3119071

Technical specifications

Nominal voltage (details): 230 V

Product type: RCBO

Number of pins: 2

Release characteristics: K

Differential current rating: 0.03 A

Content: 1 pc(s)

Nominal current: 13 A

Nominal current - rounded value: 13 A

Model: 1-phase

Switch-off capacity: 6 kA

: AC

: 35 mm

: 13 A

: 230 V

: K

: 500 V

: 0.03 A

: A

: 3

: 3

: 2

: 2

: 50/60 Hz

: IP20

: 1

: TRUE

: 10 kA

: 0.75-25 mm²

: 0.75-16 mm²

: FALSE

: -25-55 °C

: FALSE

: 2

: FALSE

: 4 kV

: 6 kA

: Undelayed

: 6 kA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3119071 ABB 2CSR255188R1137 RCBO 1-phase 13 A 0.03 A

Description

FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They meet the product standards IEC/EN 61009-1, IEC/EN 61009-2-1.
The regulations according to DIN EN 45545 (fire and smoke protection standard) R22-R26 and category 1 - class A and class B according to IEC 61373 (shock and vibration resistance) make the DS201 A T fit for use in rail vehicles.
The extensive range of accessories offers you everything that you need WAS for your installation tasks.
The approvals are: CCC (China), EAC (Russia), RCM (Australia).
Rated switching capacity according to IEC/EN 61009 ICN = 6 kA (according to industry standard IEC/EN 60947-2 ICU = 10 kA).
RCBO DS201 A T (Traction) Type A is 1-pin protected (LS), 2-pin switching.

This text is machine translated.
