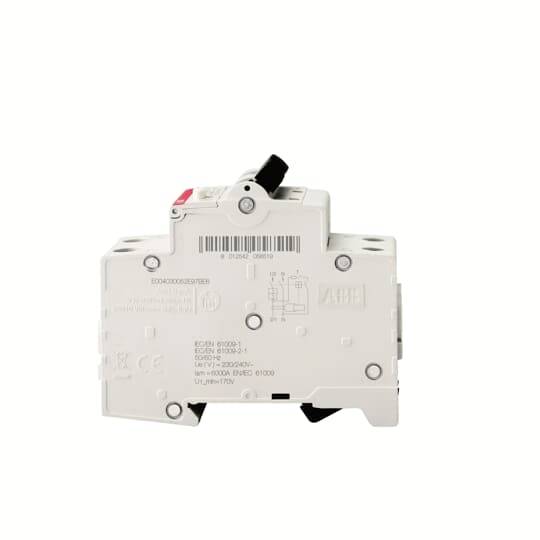

ABB 2CSR255188R1407 RCBO 40 A

FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 6 mA against earth. Fault protection (protection in case of indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with IΔn ≤ 300 mA). They meet the product standards IEC/EN 61009-1, IEC/EN 61009-2-1.
The regulations according to DIN EN 45545 (fire and smoke protection standard) R22-R26 and category 1 - class A and class B according to IEC 61373 (shock and vibration resistance) make the DS201 A T fit for use in rail vehicles.
The extensive range of accessories offers you everything that you need WAS for your installation tasks.
The approvals are: CCC (China), EAC (Russia), RCM (Australia).
Rated switching capacity according to IEC/EN 61009 ICN = 6 kA (according to industry standard IEC/EN 60947-2 ICU = 10 kA).
RCBO DS201 A T (Traction) Type A is 1-pin protected (LS), 2-pin switching.
