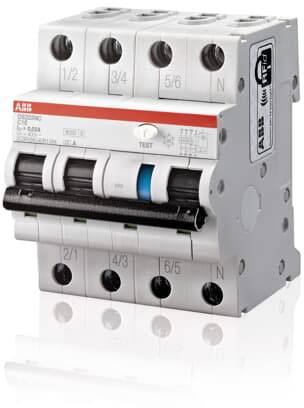

ABB 2CSR256140R3165 RCBO 4-pin 0.3 A
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
4
Release characteristics
B
Differential current rating
0.3 A
Switch-off capacity
6 kA
Datasheet (PDF)
Technical specifications
- Product type
RCBO
- Number of pins
4
- Release characteristics
B
- Differential current rating
0.3 A
- Factory colour
Grey
- Content
1 pc(s)
- Switch-off capacity
6 kA
- Depth
69 mm
AC
73 mm
16 A
400 V
B
500 V
0.3 A
3
3
2
4
10 W
IP2X
3
TRUE
25-25 mm²
1-25 mm²
-25-55 °C
FALSE
4
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322856 ABB 2CSR256140R3165 RCBO 4-pin 0.3 A
User & Safety Instructions
User & Safety Instructions 2322856 ABB 2CSR256140R3165 RCBO 4-pin 0.3 A
Description
FI/LS-switches (RCBOs) offer personal and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of three single-phase or three-phase circuits against overload and short-circuit currents, protection for sinusoidal alternating currents and pulsating currents with smooth DC fault current of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA) and fire protection (with I∆n ≤ 300 mA). They comply with the product standard IEC/EN 61009-1 (VDE 0664-20). Applications include domestic, commercial and industrial applications. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the DS203NC fit for worldwide use. Rated switching capacity ICN = 6,000 A according to IEC/EN 61009-1 (VDE 0664-20) for RCDs (residual current protective devices) in residential and similar applications, ICU = 10 kA according to IEC/EN 60947-2 (VDE 0660-101) for MCBs (LS) in industrial applications. RCBO DS203NC A type A is 3polig protected (LS), 4polig switching and can be used in three-phase networks with or without N-conductor.
This text is machine translated.
