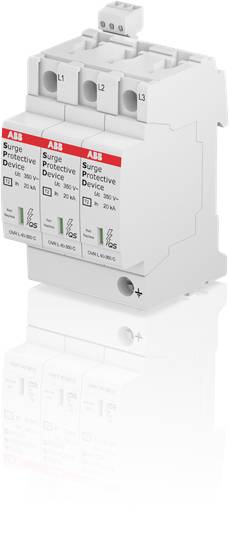

ABB 2CTB803883R2500 OVR T2 3L 40-350 P Surge protection 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Surge protection
- Leakage current
20 kA
- Nominal voltage
230 V AC
- Manufacturer part #
2CTB803883R2500
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
TRUE
3
3 modular spacing
1.5 kV
350 V
20 kA
230 V
TRUE
Optic
420 V
IP20
FALSE
25 mm²
16 mm²
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
FALSE
20 kA
100 kA
125 A
FALSE
125 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119319 ABB 2CTB803883R2500 OVR T2 3L 40-350 P Surge protection 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119319 ABB 2CTB803883R2500 OVR T2 3L 40-350 P Surge protection 20 kA 1 pc(s)
Description
Surge protection devices SPD type 2 with the thermal monitoring QUICKSAFE® are for protection against indirect lightning effects and with switching surges. They will be installed as close as possible to the feed point of the electrical system. All OVR T2 consists of a base part and an interchangeable protective module. They are equipped with a mechanical function display and the TS variants with a potential-free change-over contact. They are compatible with the System PRO M compact series and can be connected via phase rails. Mainly used in sub-distributions and final circuits.
This text is machine translated.
This text is machine translated.
