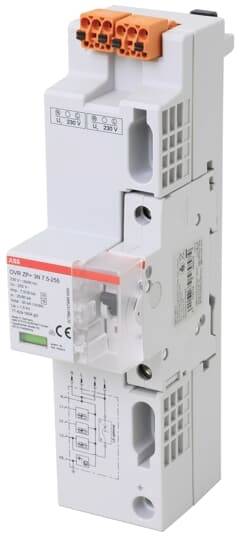

ABB 2CTB815799R3100 OVR ZP+ 3N 12.5-25 Lightning conductor Surge protection for: 40 mm busbar 12.5 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Lightning conductor
- Surge protection for
40 mm busbar
- Leakage current
12.5 kA
- Nominal voltage
230 V AC
- Manufacturer part #
2CTB815799R3100
- Factory colour
Multicolour
- Content
1 pc(s)
- Packaging type
Piece
Busbar
12.5 kA
4
2 modular spacing
1.5 kV
FALSE
25 kA
255 V
230 V
Type 1 + 2
1.5 kV
Optic
IP20
1.5 kV
FALSE
35 mm²
50 mm²
FALSE
FALSE
FALSE
TRUE
FALSE
TRUE
TRUE
FALSE
TRUE
1.5 kV
-1 A
-1 A
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3115717 ABB 2CTB815799R3100 OVR ZP+ 3N 12.5-25 Lightning conductor Surge protection for: 40 mm busbar 12.5 kA Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3115717 ABB 2CTB815799R3100 OVR ZP+ 3N 12.5-25 Lightning conductor Surge protection for: 40 mm busbar 12.5 kA Piece 1 pc(s)
Description
Combination conductor with function display, for tool-free mounting on the 40mm busbar system with surge-protected voltage pickup (L and N) by a 25kA B6A circuit breaker for RFZ and APZ according to the VDE-AR-N 4100 application rule.
Application: Building with external lightning protection (BSK III/IV) and to meet the requirements for lightning and overvoltage protection of the electrical system according to the lightning protection standard DIN VDE 0185-305 part 1-4.
This text is machine translated.
Application: Building with external lightning protection (BSK III/IV) and to meet the requirements for lightning and overvoltage protection of the electrical system according to the lightning protection standard DIN VDE 0185-305 part 1-4.
