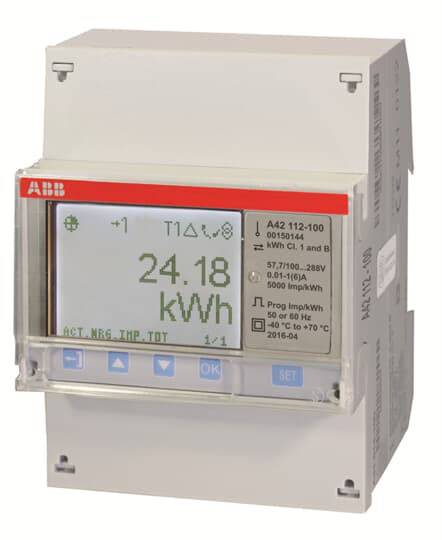

ABB A42 112-100 2CMA170510R1000 Electricity meter (AC) Digital MID-approved: Yes Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Display
Digital
Calibration
Calibrated
Counter type
electronic
Display
Digital
Datasheet (PDF)
Technical specifications
- Counter type
electronic
- Product type
Electricity meter (AC)
- Display
Digital
- Calibration
Calibrated
- Display
Digital
- Frequency
50 Hz
- MID-approved
Yes
- Reading type
Active energy
- Current (max.)
1 A
- Current range
1 A (max)
- Type
A42 112-100
- Packaging type
Piece
- Effective current range
6 A
DRA (DIN-rail adapter)
70
26.5 mm
65 mm
0.801 W
50-60 MHz
4
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319085 ABB A42 112-100 2CMA170510R1000 Electricity meter (AC) Digital MID-approved: Yes Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319085 ABB A42 112-100 2CMA170510R1000 Electricity meter (AC) Digital MID-approved: Yes Piece 1 pc(s)
Description
AC meter for measuring single-phase networks via a converter connection CTVT (converter ratio for current and voltage configurable) up to a maximum of 6 A. The following values are output via a white backlit display with up to 7 digits: Active energy (class 1), power, current, voltage (L-N) and frequency. Communication can be via the integrated M-Bus interface or via the infrared interface for connecting a KNX module. The energy meter has an output. This can be used as pulse output for the output of active energy or as alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. Counter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
