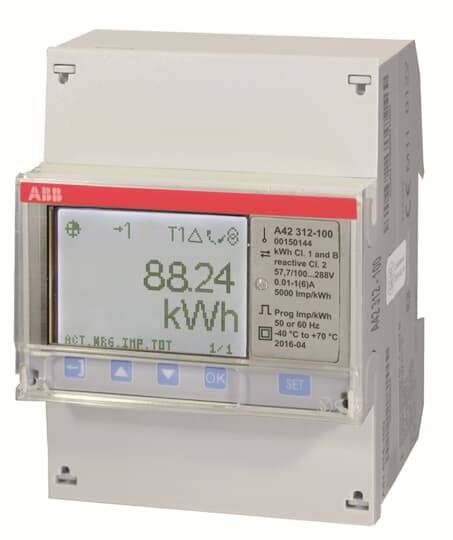

ABB A42 312-100 2CMA170512R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Converter meter
Current load
6 A
Display
Digital
Calibration
Calibrated
Dim
(L x W x H) 65 x 70 x 26.5 mm
Datasheet (PDF)
Technical specifications
- Product type
Converter meter
- Current load
6 A
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 65 x 70 x 26.5 mm
- Accuracy class
B
- MID-approved
Yes
- Reading type
Active energy
- Width
70 mm
- Height
26.5 mm
- Length
65 mm
- Current (max.)
6 A
- Current range
6 A (max)
- Features
Reset option
- Type
A42 312-100
- Effective current range
6 A
DRA (DIN-rail adapter)
70
Measurement transformer
26.5 mm
65 mm
Purchase/supply
Digital
0.801 W
50-60 MHz
6 A
4
7
Electronic
IP20
Other
Effecive and reactive power
Multi-tariff
External
TRUE
TRUE
Measuring Instruments Directive
Electrical
S0
B
Single phase
FALSE
FALSE
FALSE
6 A
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118749 ABB A42 312-100 2CMA170512R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118749 ABB A42 312-100 2CMA170512R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
Description
AC meter for the measurement of single-phase mains over a converter connection CTVT (transformer ratio for current and voltage configurable) up to a maximum of 6 A. The following values are output on a white backlit display with up to 7 digits: Active energy (class 1) and reactive energy (class 2) for import and export, power, current, voltage (L-N), frequency, cos phi, Power factor and apparent power. Communication can take place via the integrated RS485 interface or via the infrared interface. The energy meter has 2 permanently configured inputs and outputs. The output can be used optionally as pulse output or alarm output. Here, up to 25 alarm values can be set. The inputs are used to control the tariffs or for counting external pulses. The resettable counter allows the measurement of individual intervals. In addition, the meter can record up to 4 tariffs. Meter is calibrated according to MID and approved according to IEC. The installed width is 4 DIN modules.
