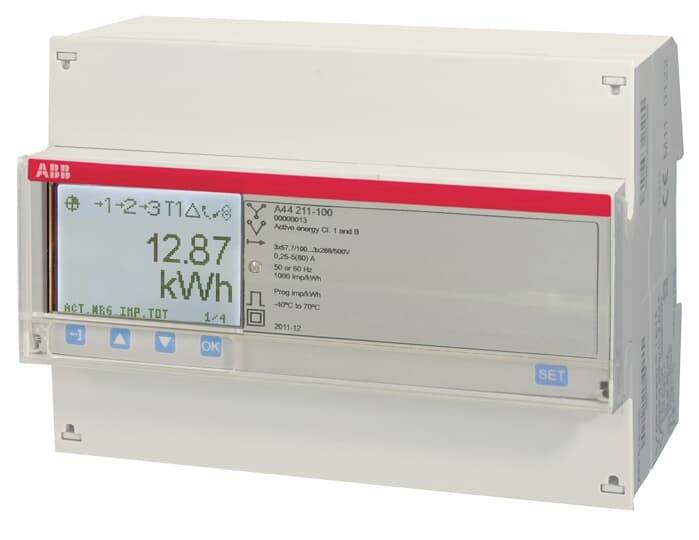

ABB A44 211-100 2CMA100013R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Converter meter
Current load
6 A
Display
Digital
Calibration
Calibrated
Dim
(L x W x H) 65 x 123 x 26.5 mm
Datasheet (PDF)
Technical specifications
- Product type
Converter meter
- Current load
6 A
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 65 x 123 x 26.5 mm
- Accuracy class
B
- MID-approved
Yes
- Reading type
Active energy
- Width
123 mm
- Height
26.5 mm
- Length
65 mm
- Current (max.)
6 A
- Current range
6 A (max)
- Type
A44 211-100
DRA (DIN-rail adapter)
123
Measurement transformer
26.5 mm
65 mm
Purchase/supply
Digital
0.801 W
50-60 MHz
6 A
7
7
Electronic
IP20
Other
Effecive and reactive power
One-tariff
TRUE
TRUE
Measuring Instruments Directive
Electrical
S0
B
Three conductor/four conductor
FALSE
FALSE
FALSE
6 A
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118743 ABB A44 211-100 2CMA100013R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118743 ABB A44 211-100 2CMA100013R1000 Converter meter Digital 6 A MID-approved: Yes 1 pc(s)
Description
Three-phase meter for measuring a three-conductor or four-conductor three-phase current supply via a converter connection CTVT (transformer ratio for current and voltage configurable) up to a maximum of 6 A. The following values are given on a white backlit display with up to 7 digits: Active energy (class 1) and reactive energy (class 2) for import and export, power, currents, voltages (L-L, L-N), Frequency, cos phi, Power factor and apparent power, both per phase and total. Communication can take place via the integrated infrared interface for connecting a KNX module. The energy meter has one output. This can be used as pulse output for the output of the active or Reactive power or as an alarm output. Here, up to 25 alarm values (thresholds with time delay) can be set. Meter is calibrated according to MID and approved according to IEC. The installed width is 7 DIN modules.
